Turnbuckle - StB - Stainless body with bronze thread, Stainless Terminals, 7/8", Swage terminal/Open, For ø12 mm wire

StB Turnbuckles

Stainless & Bronze

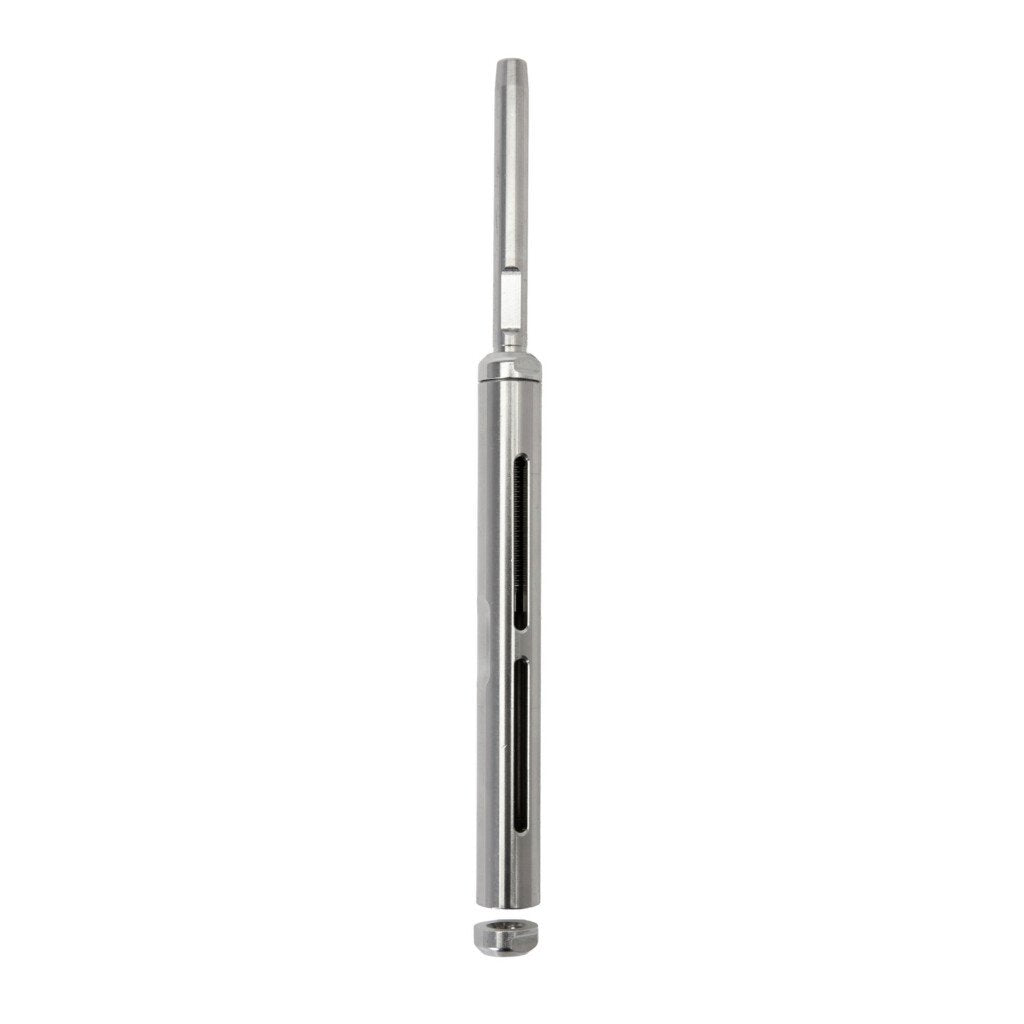

With its elegant and functional design, this turnbuckle is the natural choice for both new builds and rigging upgrades.

The body and terminals are made of acid-resistant stainless steel AISI 316, ensuring maximum durability in marine environments. A bronze thread insert reduces friction, providing smooth adjustment and long service life.

The round body features a distinctive wrench grip for a firm hold with an adjustable spanner.

Locking is handled with polished, rounded locknuts – a stylish and user-friendly solution that also protects sails and ropes from chafe.

A slot on one side allows for easy measurement of the distance between terminals studs.

Hint - when you are satisfied with your tuning, make a note of these distances to simplify next stepping of your mast.

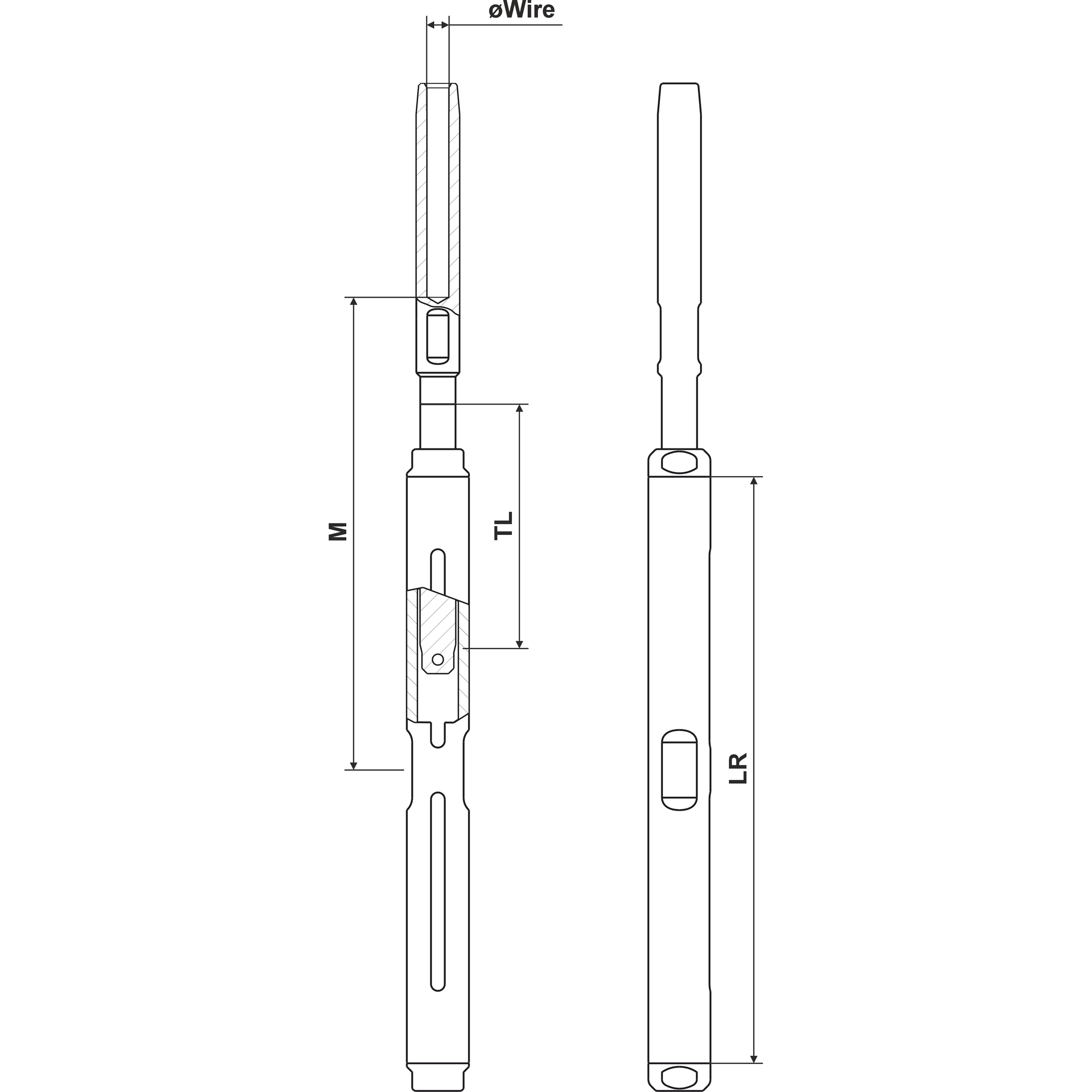

Wire diam: 12 mm
Thread size: 7/8"
Bodytype: STB
M-MIN: 223 mm
M-MAX: 328 mm
LR: 320 mm
TL: 146 mm
Breaking Load: 18810 kg

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
