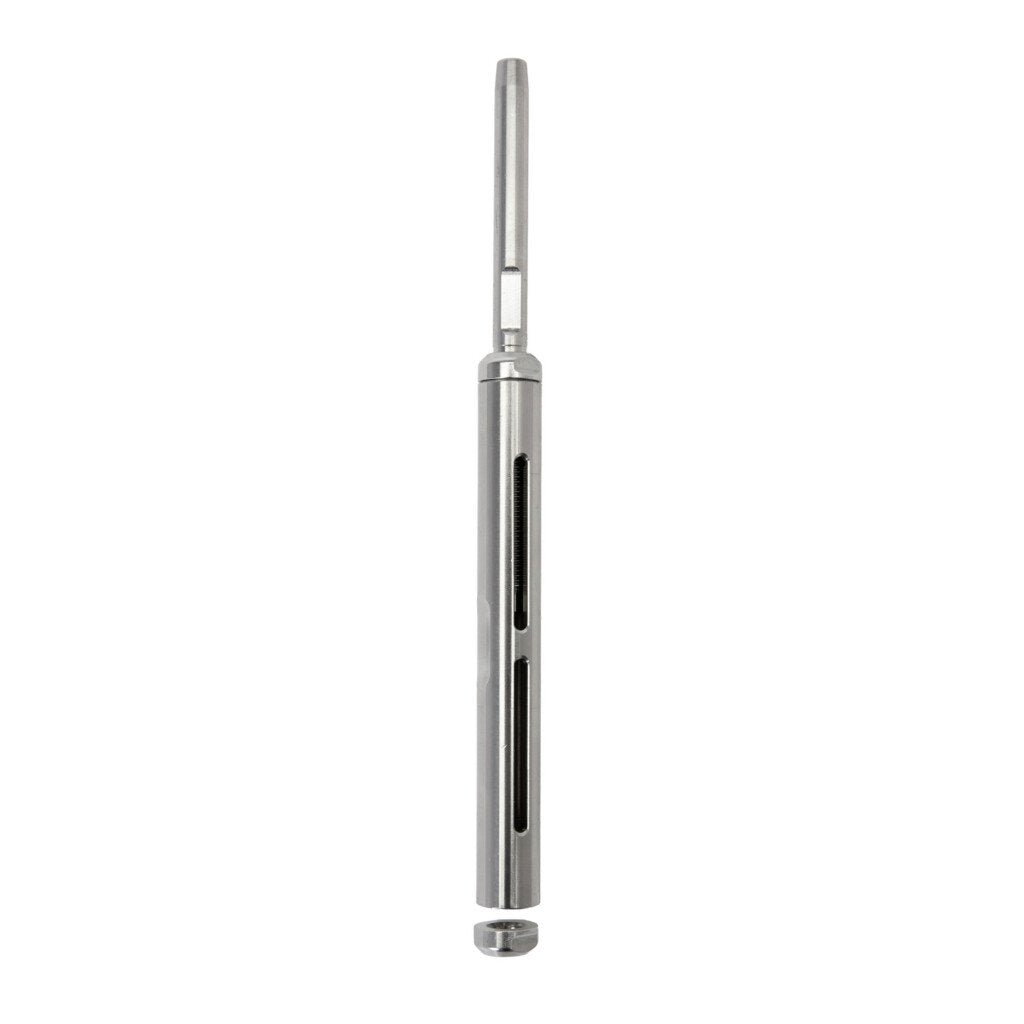

Turnbuckle - StB - Stainless body with bronze thread, Stainless Terminals, 7/16", Swage terminal/Open, For ø7 mm wire

StB Turnbuckles

Stainless & Bronze

With its elegant and functional design, this turnbuckle is the natural choice for both new builds and rigging upgrades.

The body and terminals are made of acid-resistant stainless steel AISI 316, ensuring maximum durability in marine environments. A bronze thread insert reduces friction, providing smooth adjustment and long service life.

The round body features a distinctive wrench grip for a firm hold with an adjustable spanner.

Locking is handled with polished, rounded locknuts – a stylish and user-friendly solution that also protects sails and ropes from chafe.

A slot on one side allows for easy measurement of the distance between terminals studs.

Hint - when you are satisfied with your tuning, make a note of these distances to simplify next stepping of your mast.

Wire diam: 7 mm
Thread size: 7/16"
Bodytype: STB

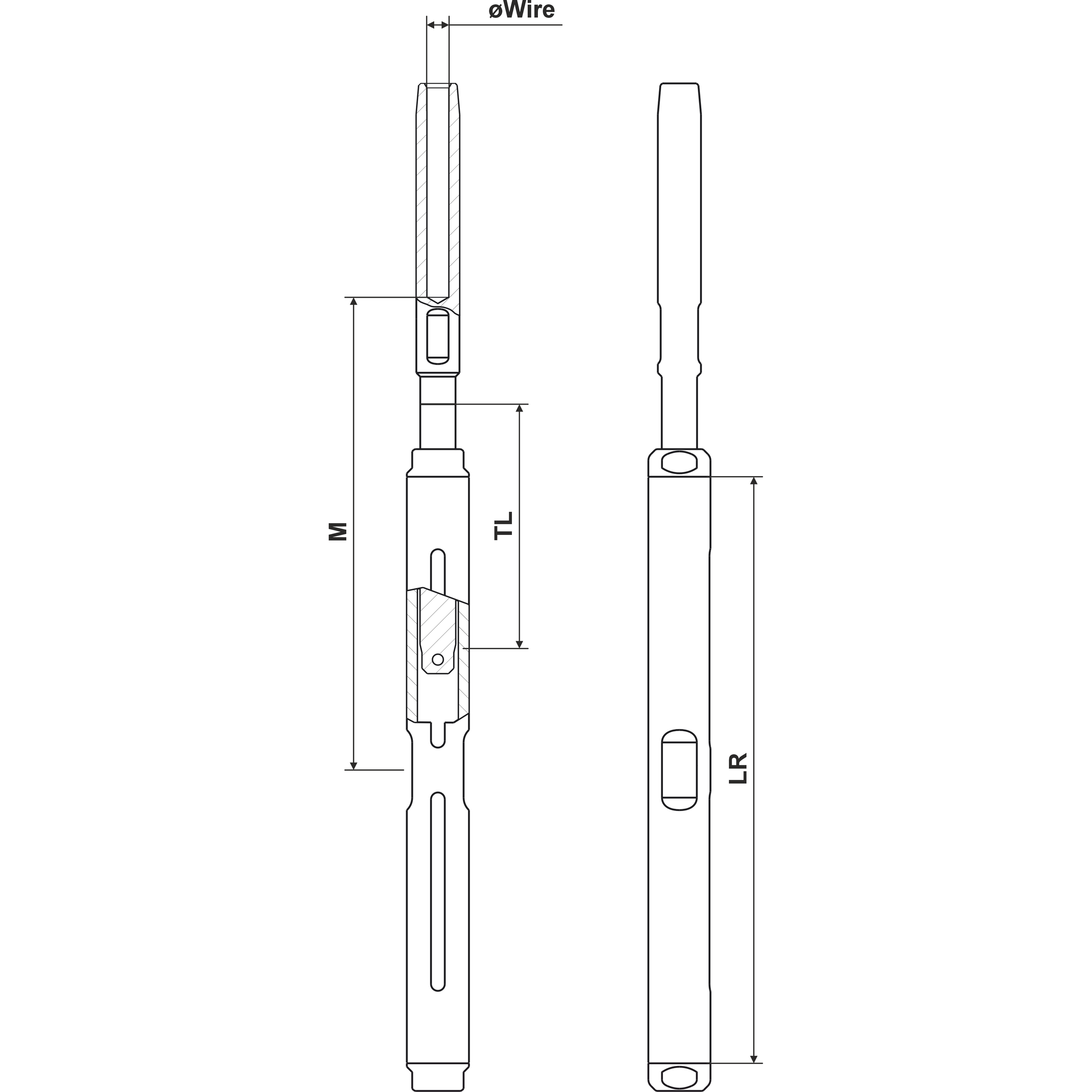

M-MIN: 126 mm
M-MAX: 180 mm
LR: 170 mm
TL: 75 mm
Breaking Load: 5040 kg

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
