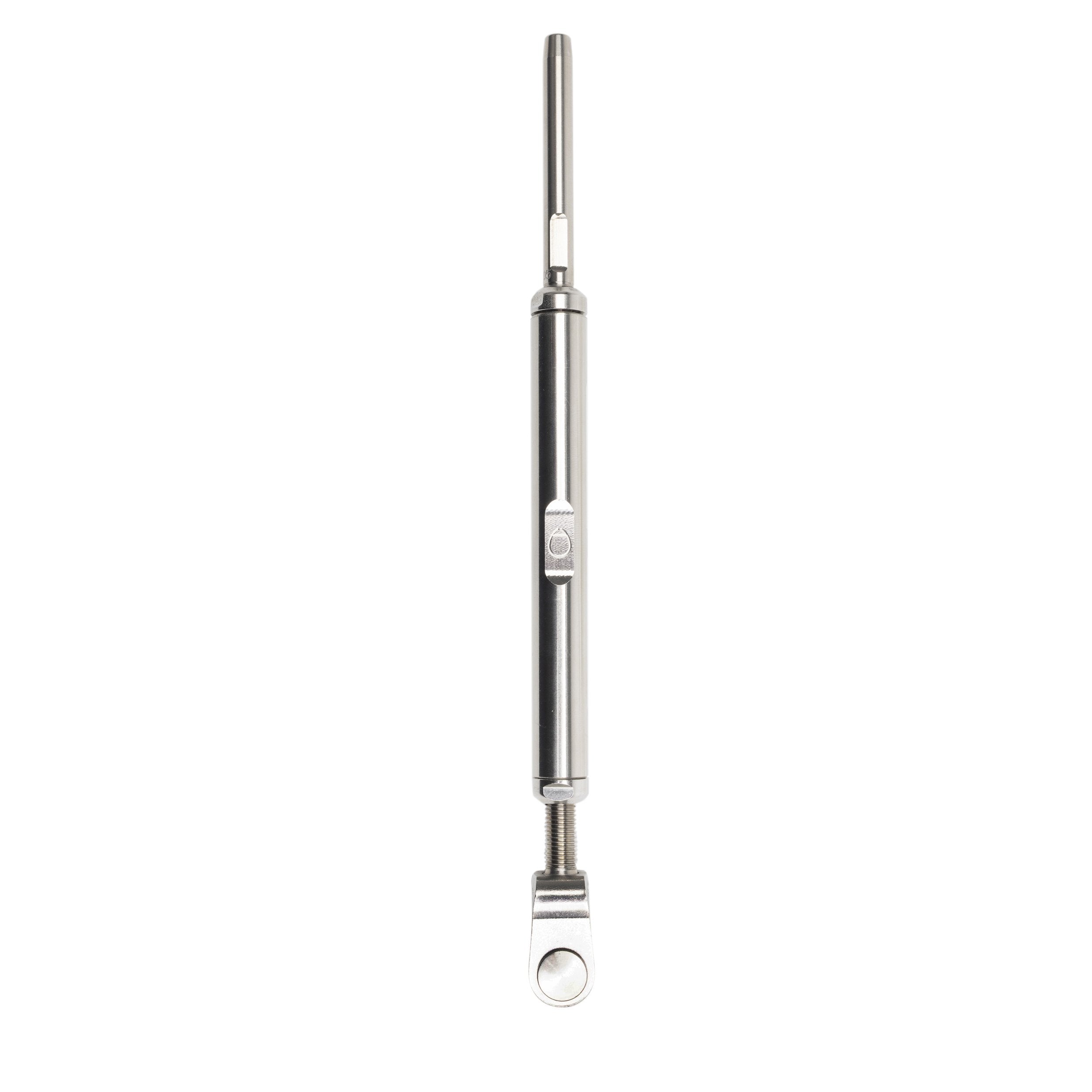

Turnbuckle - StB - Stainless body with bronze thread, Stainless Terminals, 7/16", Swage terminal/Fork, ø11 mm Clevis Pin, For ø6 mm wire

StB Turnbuckles

Stainless & Bronze

With its elegant and functional design, this turnbuckle is the natural choice for both new builds and rigging upgrades.

The body and terminals are made of acid-resistant stainless steel AISI 316, ensuring maximum durability in marine environments. A bronze thread insert reduces friction, providing smooth adjustment and long service life.

The round body features a distinctive wrench grip for a firm hold with an adjustable spanner.

Locking is handled with polished, rounded locknuts – a stylish and user-friendly solution that also protects sails and ropes from chafe.

A slot on one side allows for easy measurement of the distance between terminals studs.

Hint - when you are satisfied with your tuning, make a note of these distances to simplify next stepping of your mast.

Wire diam: 6 mm
Thread size: 7/16"
Clevis pin Ø: 11.00 mm

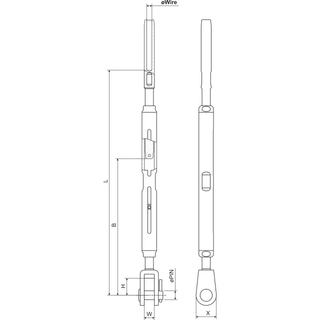

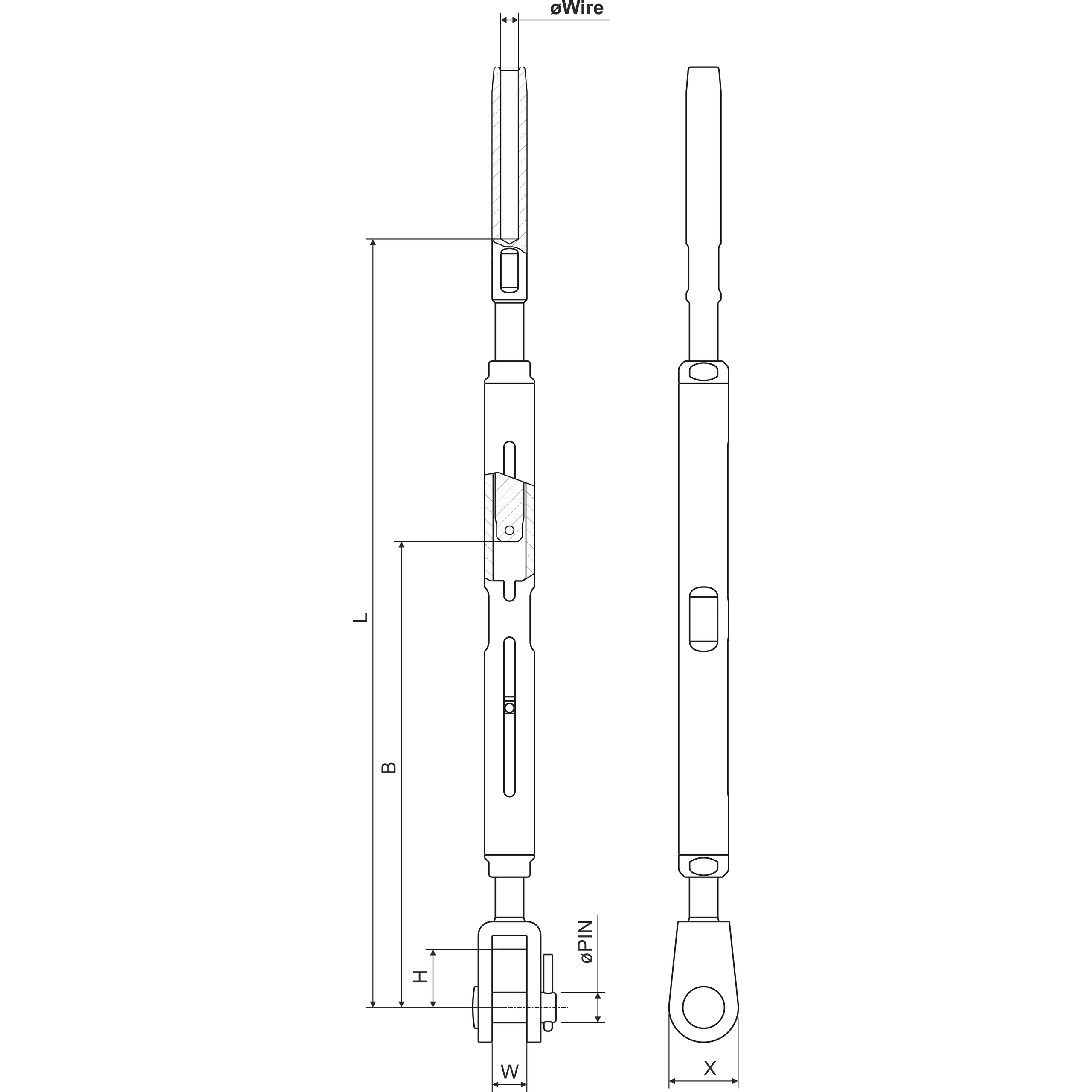

L-MIN: 245 mm
L-MAX: 349 mm
W: 12.50 mm
H: 21.00 mm
X: 25 mm
Breaking Load: 5040 kg
