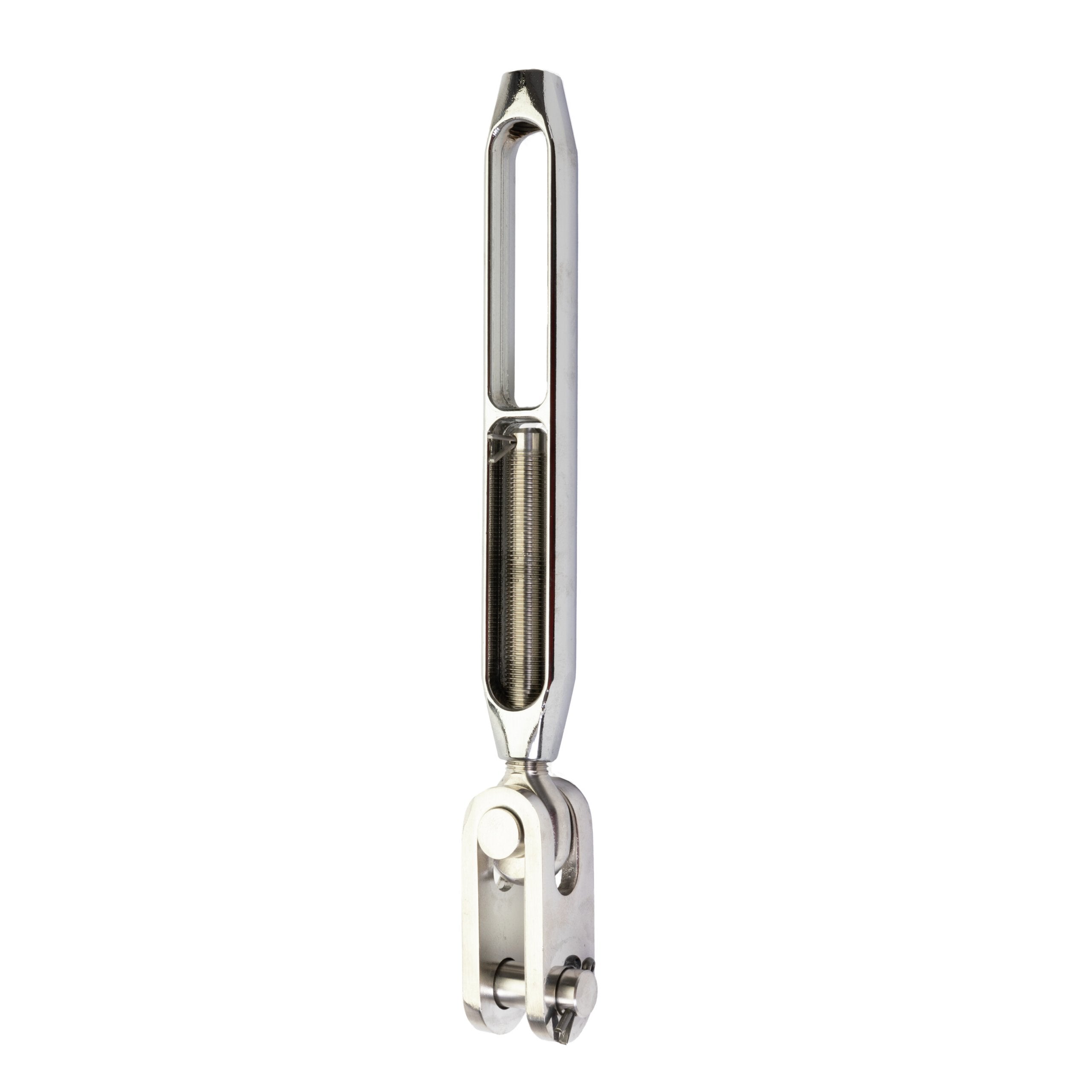

Turnbuckle - Bronze Body, Stainless Terminals, 5/16", Open/Toggle, ø8 mm Clevis Pin

Turnbuckle with Open/Toggle terminals, thread size 5/16", to be combined with ø4 or ø5 mm wire applications. Featuring a chrome plated aluminium bronze body and high-grade marine stainless steel terminals, this turnbuckle offers exceptional corrosion resistance and thread durability, ensuring safe and precise rig adjustments in accordance with Seldén's recommendations.

BodyType: bronze
Thread size: 5/16"

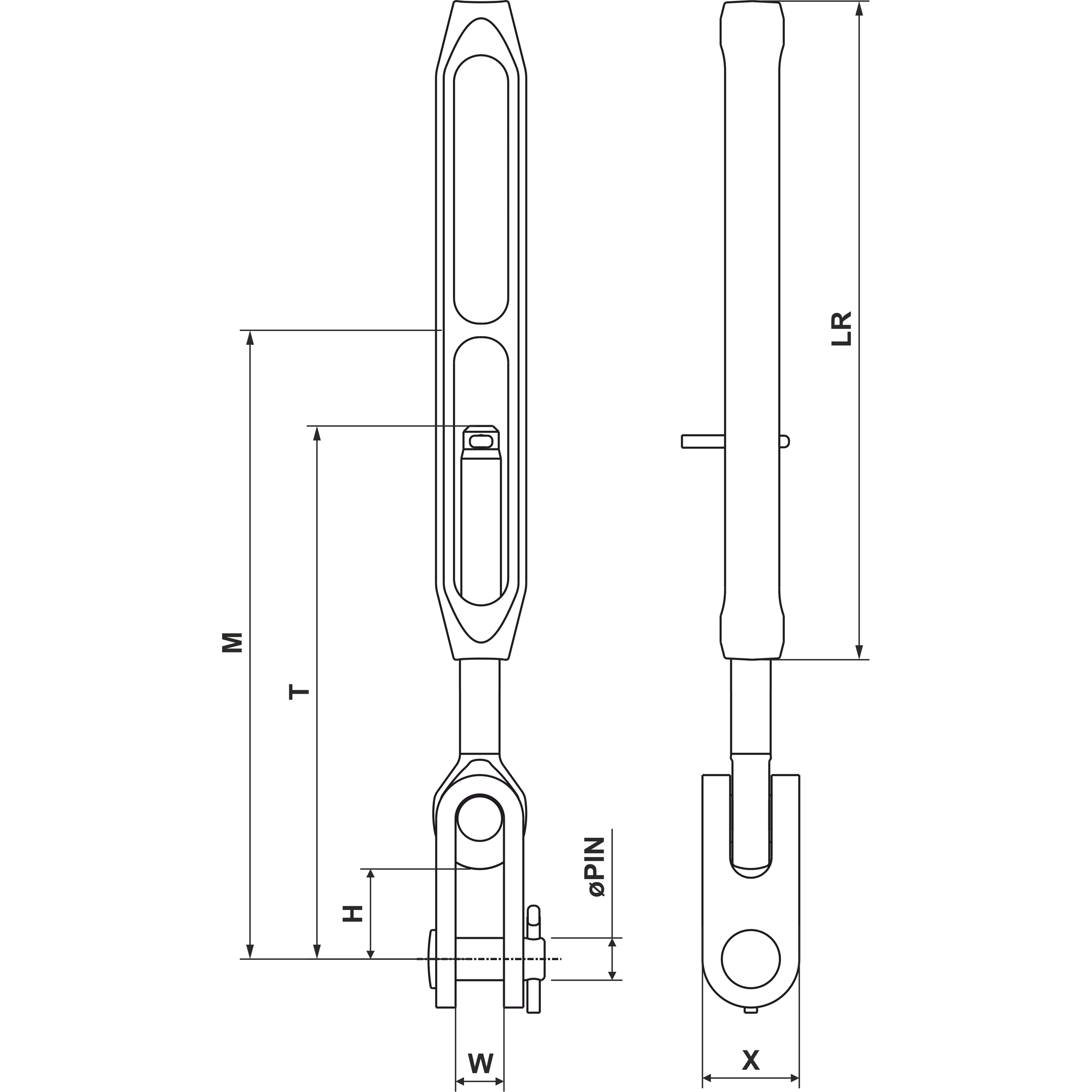

LR: 120 mm
Clevis pin ø: 8.00 mm
W: 9.00 mm
H: 18.00 mm
X: 16.00 mm
Breaking Load: 2450 kg

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
