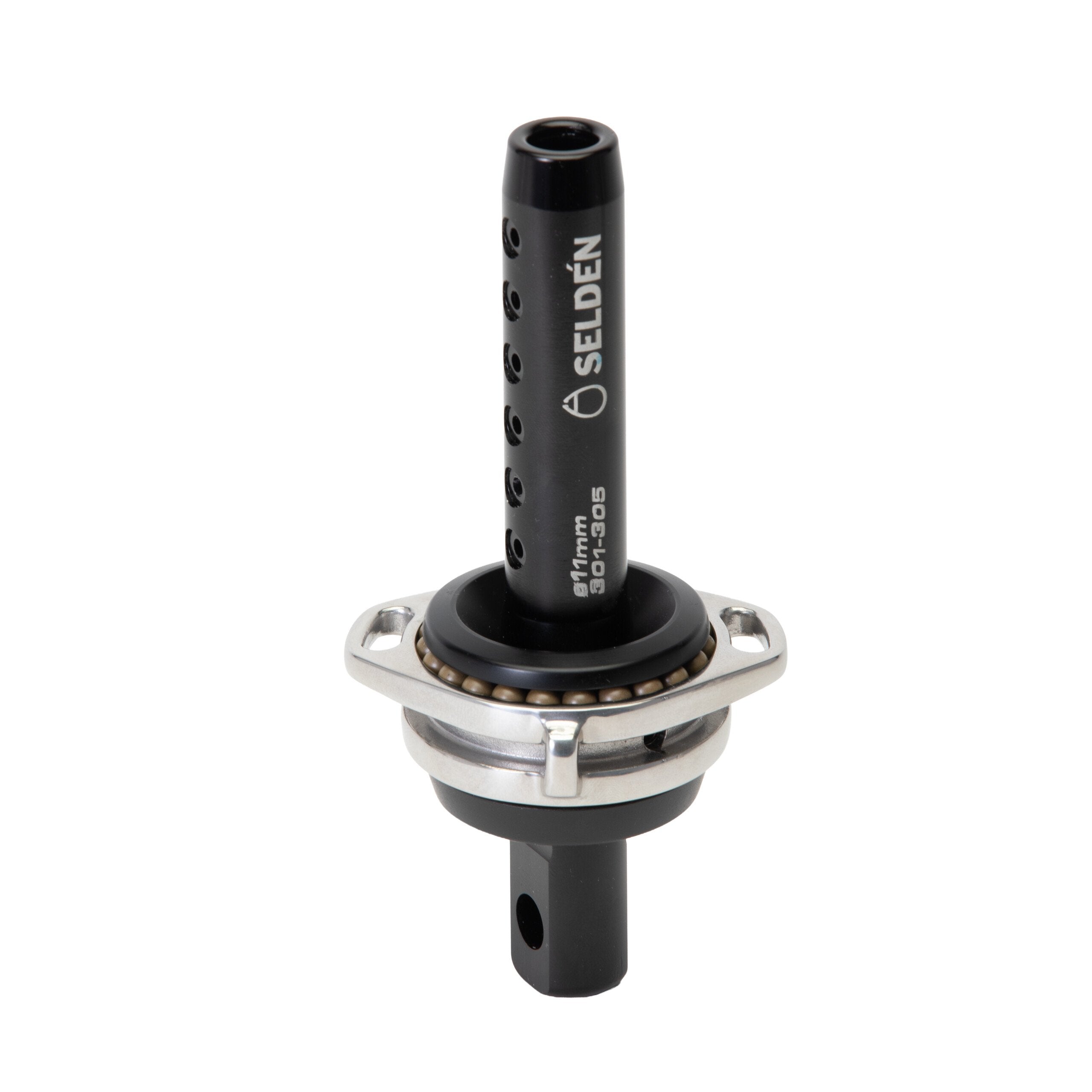

Nail Terminal Kit for ø11 mm AT-Cable, CXr15, CX15(includes 1 terminal and 7 nails)

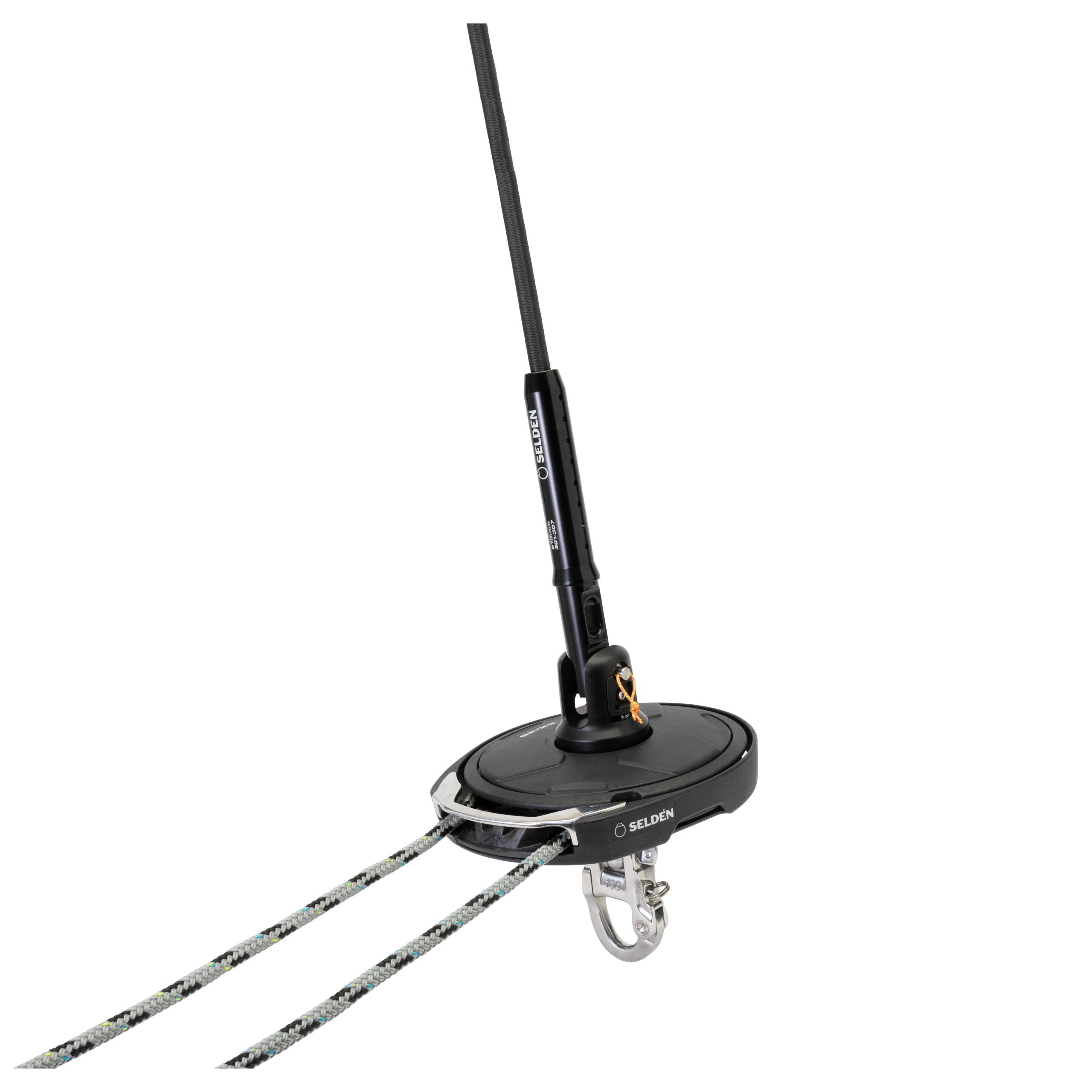

Seldén’s Nail Terminal is a solution for Anti-Torsion cables, developed to enable quick, safe, and reliable assembly of Code 0 furling systems.

Machined from anodized aluminium, the terminal features a female fitting into which the AT-cable is inserted. Sharp, hardened stainless steel nails are then driven through the terminal and the ATcable—either with a vise or by hammering—securing the assembly in place.

Thanks to the use of specially designed nails, the Dyneema® fibers in the cable remain undamaged, ensuring that the load-bearing capability and torsional rigidity of the AT-cable is fully preserved.

Check out the video and the manual:

https://vimeo.com/1145171852?fl=pl&fe=sh

https://support.seldenmast.com/files/1758209260/597-633-E.pdf

D: 22.00 mm
L: 165 mm
W: 16.00 mm
X: 22 mm
Y: 13 mm
CCL: 59 mm
Hole: 10.40 mm
SL: 22 mm
SW: 11 mm
AT Cable: 11 mm
SWL: 1500 kg
