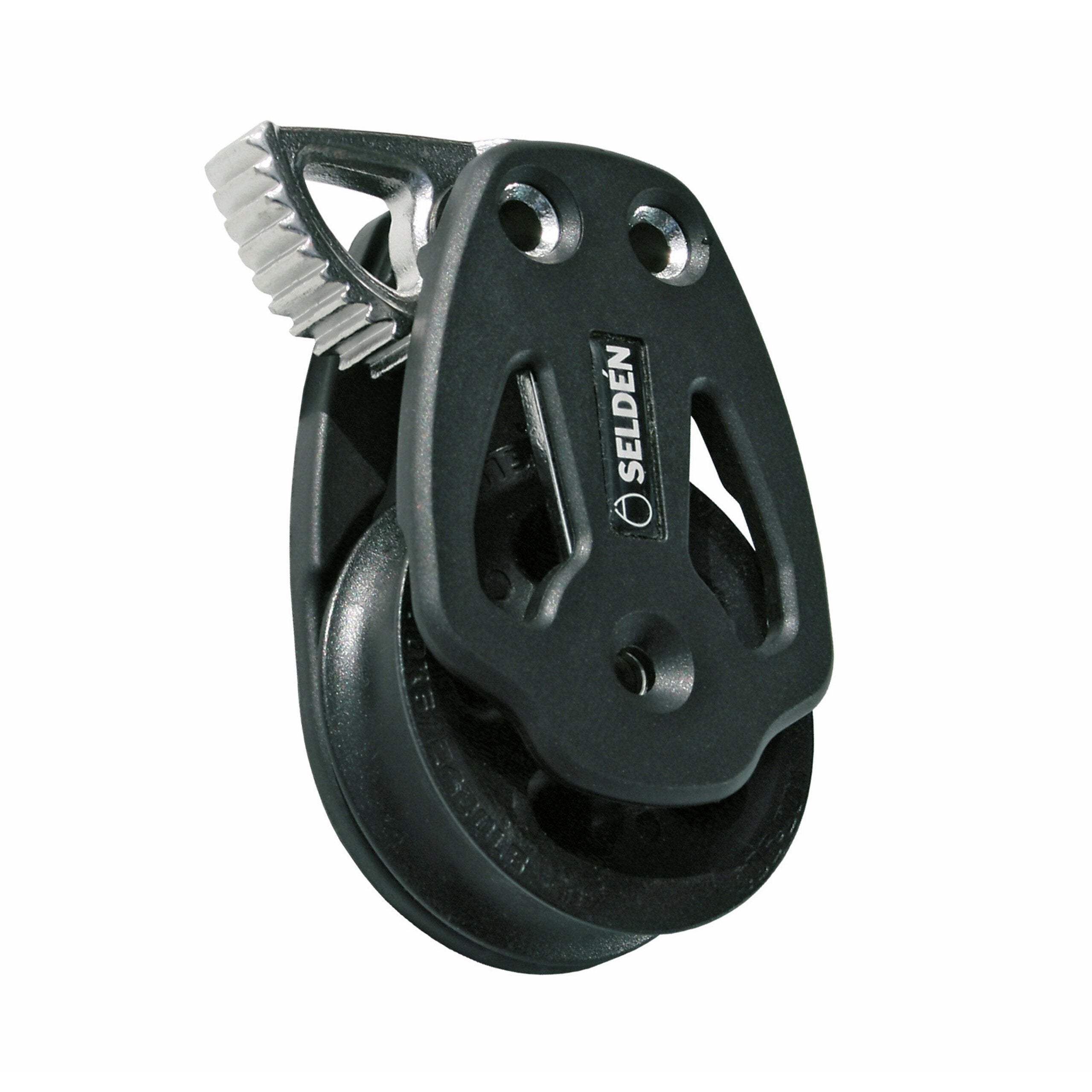

60 mm Plain Bearing Block - Cheek, Quick-Lock, Anti-clockwise

The 60 mm Single Cheek Plain Bearing Block with Quick-Lock is designed to lead a line to a winch and allow for the line to be temporarily locked with a spring-loaded locking arm. This way, the winch can be used for other purposes. Another typical application is to secure inactive spinnaker sheets / guys to prevent them to become unreeved. Also suitable to angle and lock a jib track control line.

The locking arm is spring-loaded to prevent accidential locking.

406-001-18R rotates anti-clockwise when tensioning the line.

BlockType: cheek,single,quicklock
SubType: cheek single quicklock
Breaking Load: 2000 kg
Safe working Load: 1000 kg
System: PBB60
Max line size: 14 mm
Mounting: 3xM6
