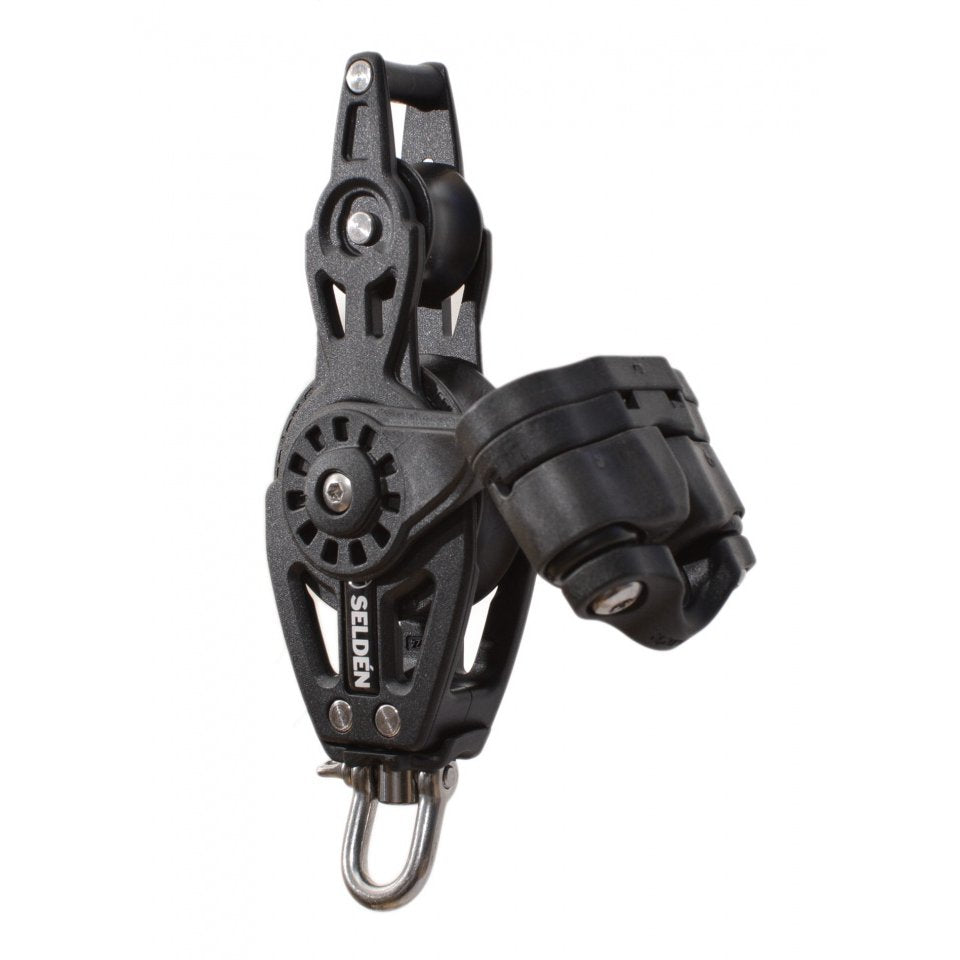

40 mm Ball Bearing Block - Fiddle, Becket, Cam

The BBB40 Fiddle Becket Cam Block combines a large 40 mm primary sheave, a smaller secondary sheave, a becket and an integrated 27 mm composite cam cleat. The cam cleat arm can be set to a variety of angles.

The block features a swiveling shaft with swivel lock - a plastic washer which is placed between block body and shackle for fixed 0° or 90° shackle position.This block is designed for dynamic rigging with high efficiency and control.

Stainless steel ball bearings ensure smooth operation, while glass fiber reinforced cheeks offer durability. Ideal for moderate and dynamic loads with minimal friction.

Safe working Load: 250 kg
Breaking Load: 500 kg
Max line size: 7 mm

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
