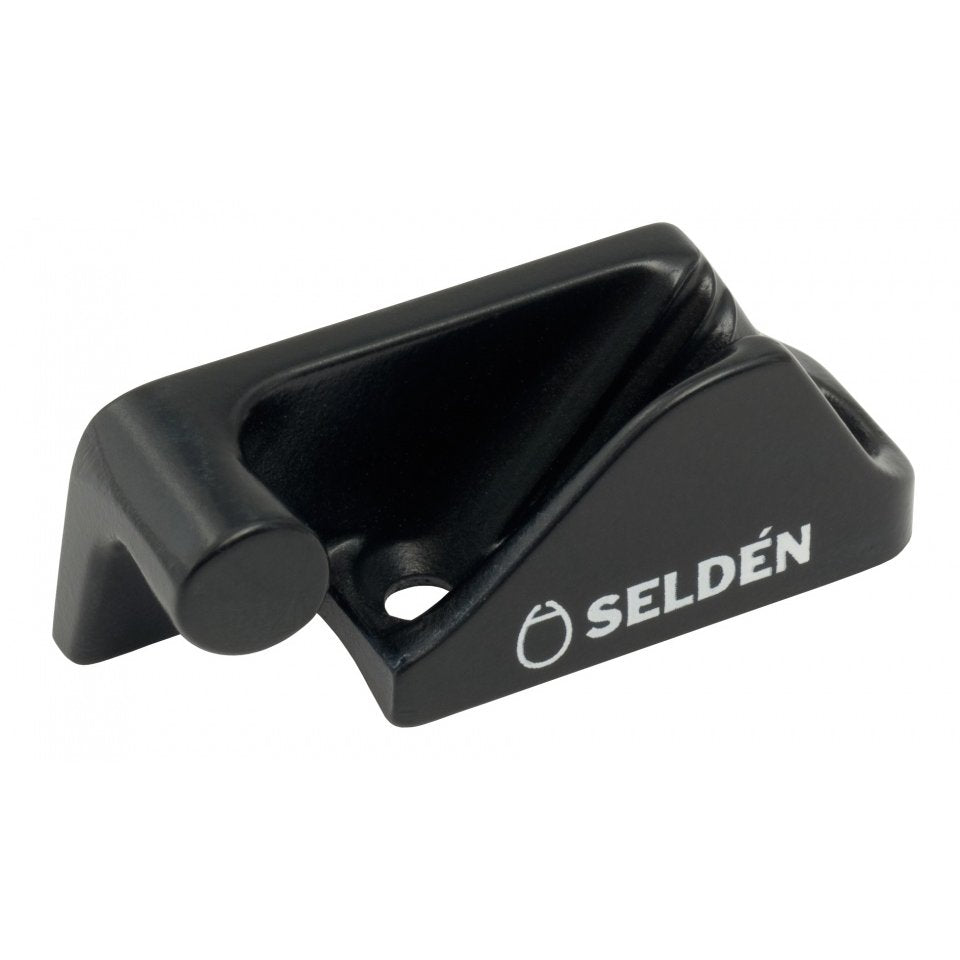

Valley Side Entry Cleat (Port) in Aluminium 1-6 mm line

The Valley Side Entry Cleat (218 MK2) in Aluminium (Port) is designed to accommodate lines between 1-6 mm with a side-entry configuration for quick adjustments. The aluminium construction ensures durability and prevents rope burn, especially in high-load applications.

The cleat can be used with a tapered pad (sold separately) to adjust the angle for better rope alignment. The side entry access simplifies line insertion, making it ideal for fast-paced tasks. Can be fitted to flat or curved surfaces with rivets, countersunk screws, or bolts.

Max line size: 6 mm
Min line size: 1 mm
Hole spacing: 27 mm
Mounting: 2xM4
Weight: 24 g
