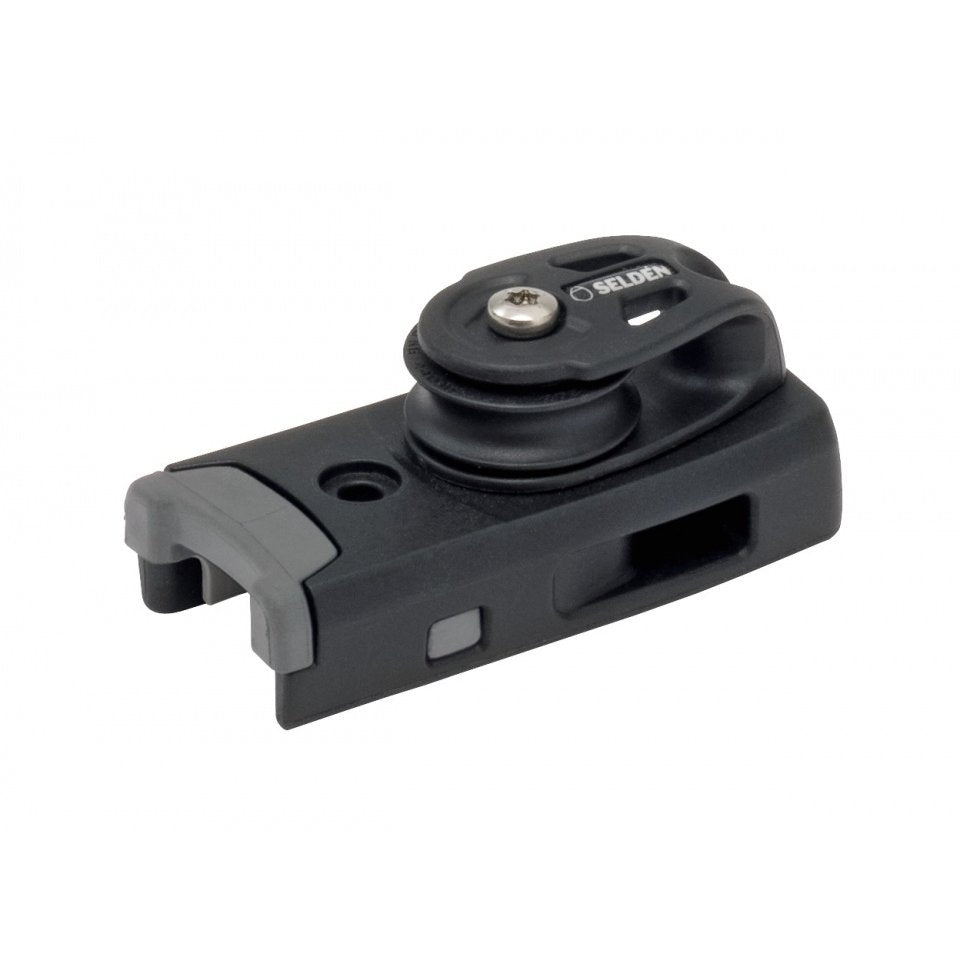

System 22 - End Control, Single Plain Bearing Sheave, Becket for Control Line

The Genoa End Control Cheek is part of the System 22 deck hardware range. It features a ø30 mm plain bearing sheaves for 3:1 purchase of the control lines. The hole in the base is a termination (becket) for a control line. The fitting is glass fiber reinforced composite with polymer sheave and a rubber buffer bearing.

Ideal dimension of the control line is ø7 mm. See Seldén's line packages.

Control lines, article numbers and descriptions

400-500-09 CONTROL LINE, BLACK  L=9000

400-500-12 CONTROL LINE, BLACK  L=12000

400-500-15 CONTROL LINE, BLACK  L=15000

400-500-18 CONTROL LINE, BLACK  L=18000

System: 22
SWL: 300 kg
Breaking load: 600 kg
Purchase: 4 N:1
Max control line Ø: 7 mm
Length: 87 mm
Width: 39 mm
Fasteners: 1x MFT M5
