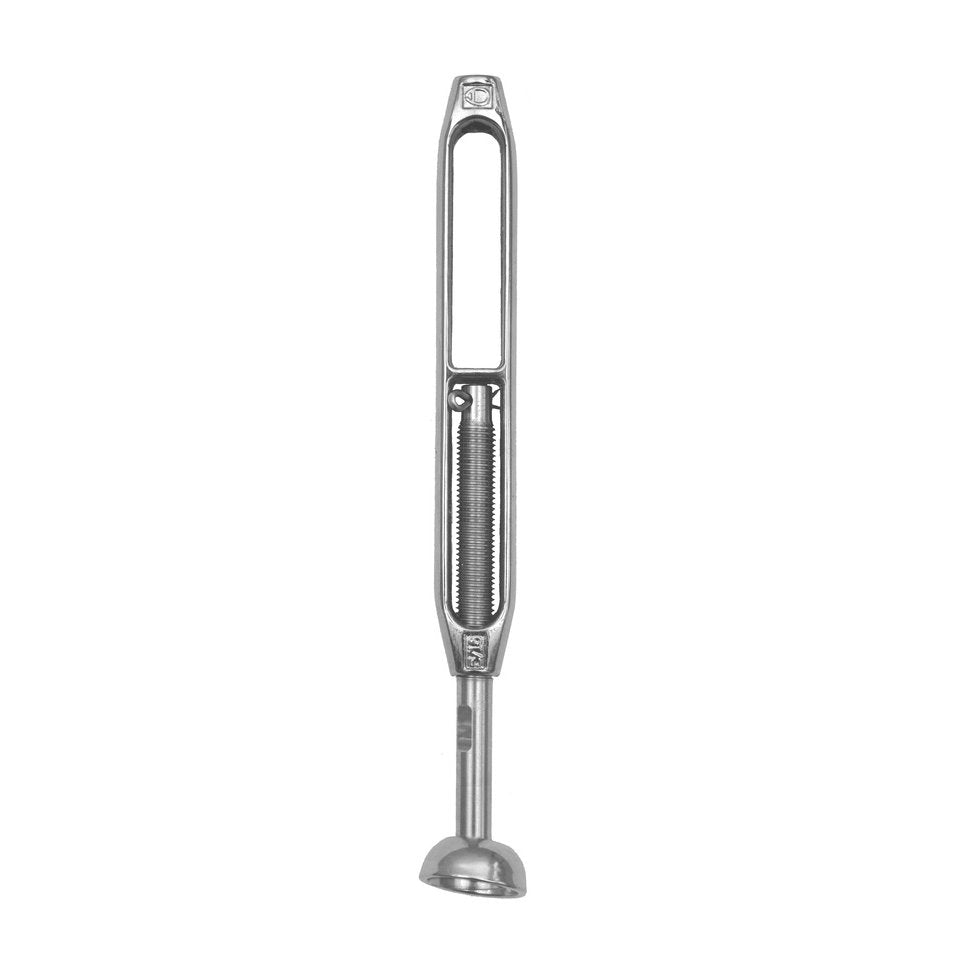

Turnbuckle - Bronze Body, Stainless Terminals, 1/2", Open/Stemball R11

Turnbuckle with Open/Stemball terminals, thread size 1/2", designed for R11 applications. The turnbuckle is constructed with a chrome plated aluminium bronze body and marine-grade stainless steel terminals, ensuring superior corrosion resistance and providing reliable rig tuning for secure performance in line with Seldén's guidelines.

BodyType: bronze
Thread size: 1/2"

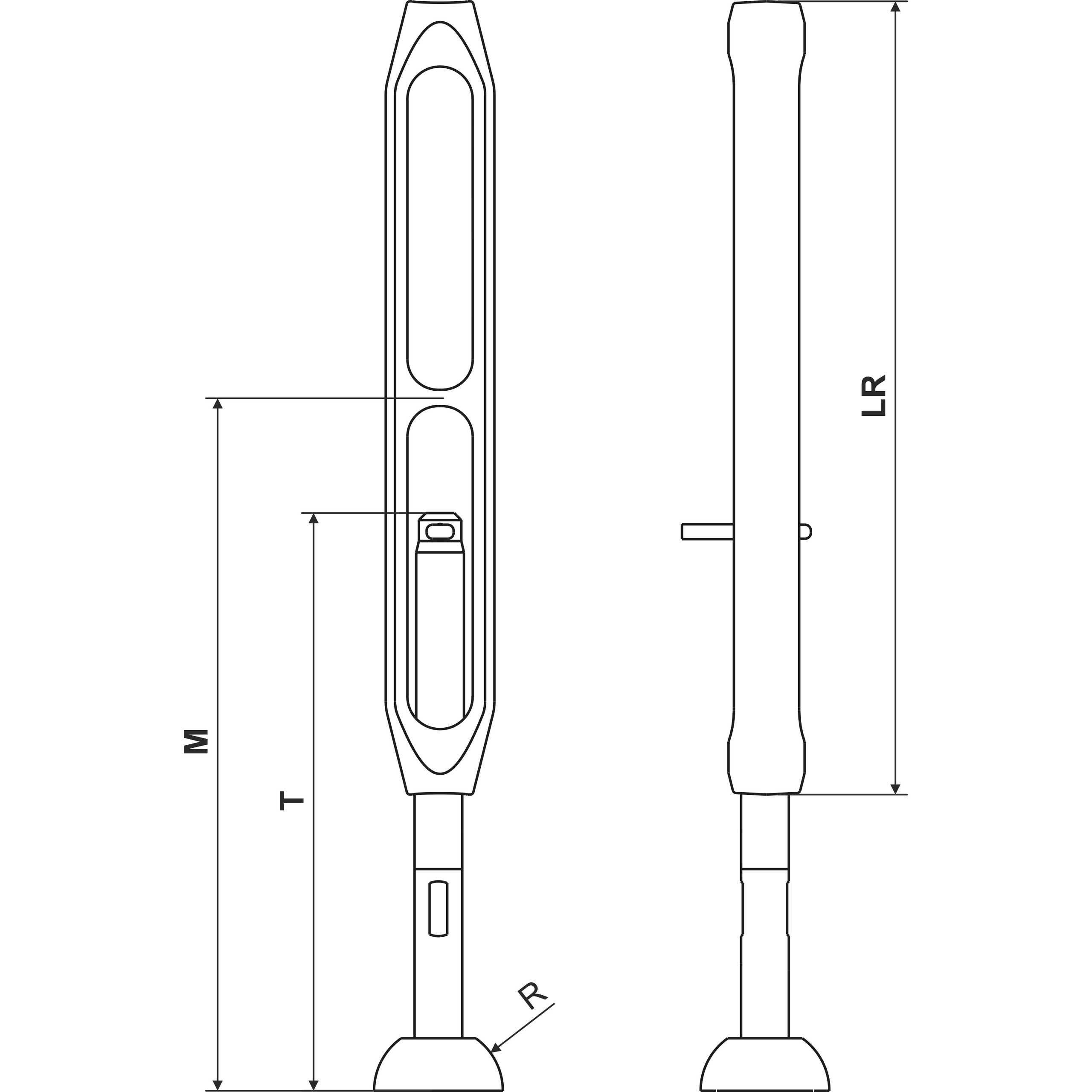

M-MIN: 146 mm
M-MAX: 220 mm
LR: 195 mm
T: 143.5 mm
Stemball size: 11 R
Breaking Load: 6200 kg

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
