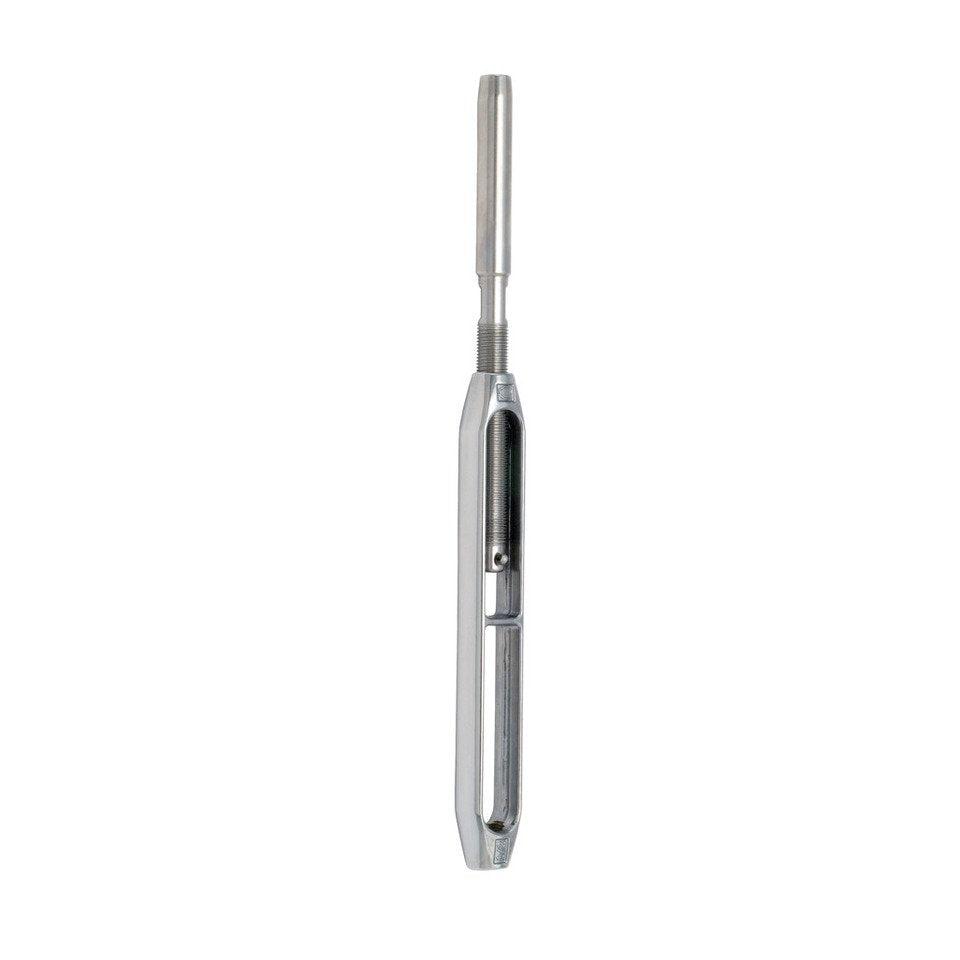

Turnbuckle - Bronze Body, Stainless Terminals, 1/2", ø8 mm Swage Terminal/Open

Turnbuckle with Swage Terminal/Open terminals, thread size 1/2", to be combined with ø8 mm wire applications. This turnbuckle is constructed with a chrome plated aluminium bronze body and high-grade marine stainless steel terminals, providing superior corrosion resistance and thread durability, essential for precise rig tuning according to Seldén's specifications.

Wire diam: 8 mm
Thread size: 1/2"
Bodytype: bronze

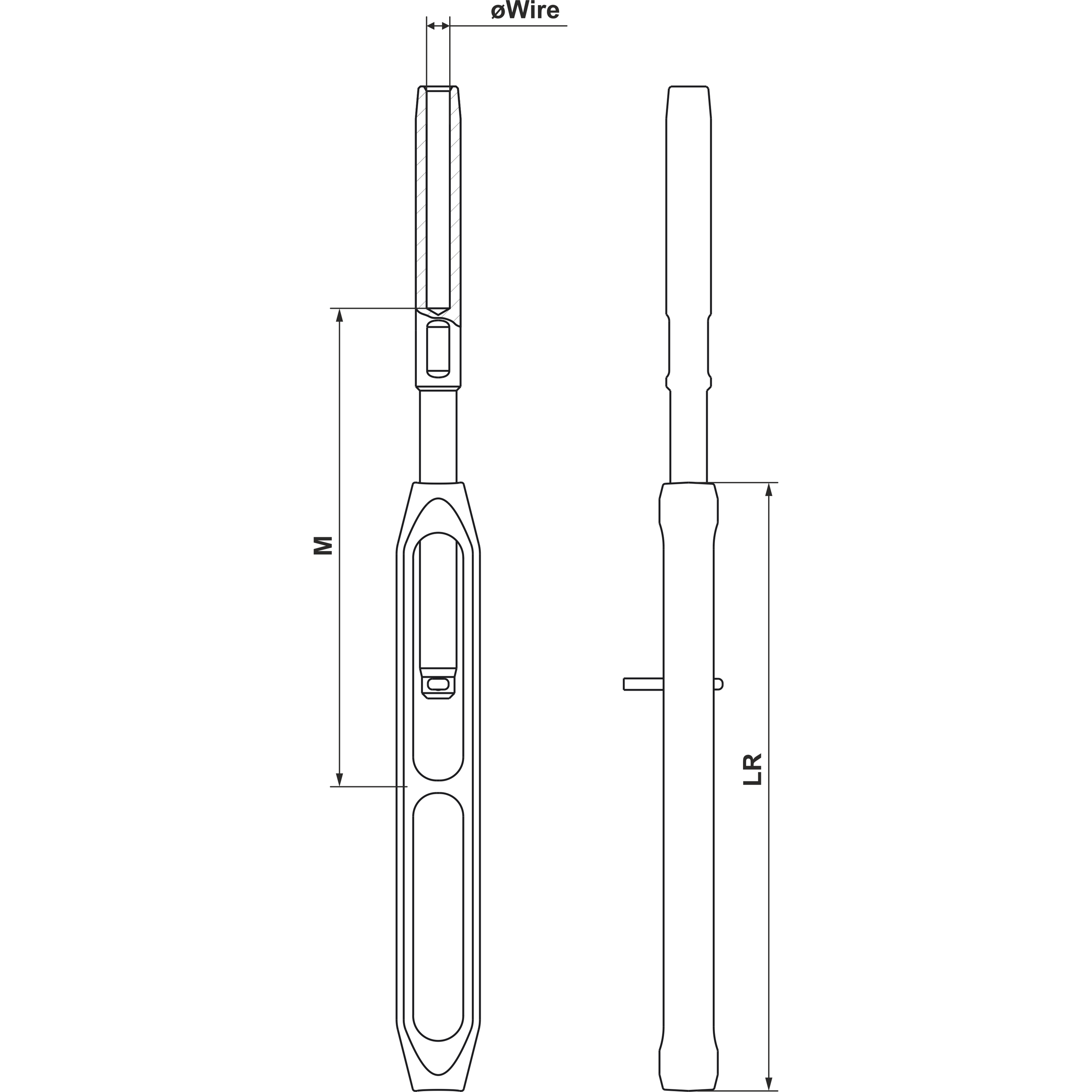

M-MIN: 128 mm
M-MAX: 202 mm
LR: 195 mm
TL: 89 mm
T: 125.00 mm
Breaking Load: 6200 kg
