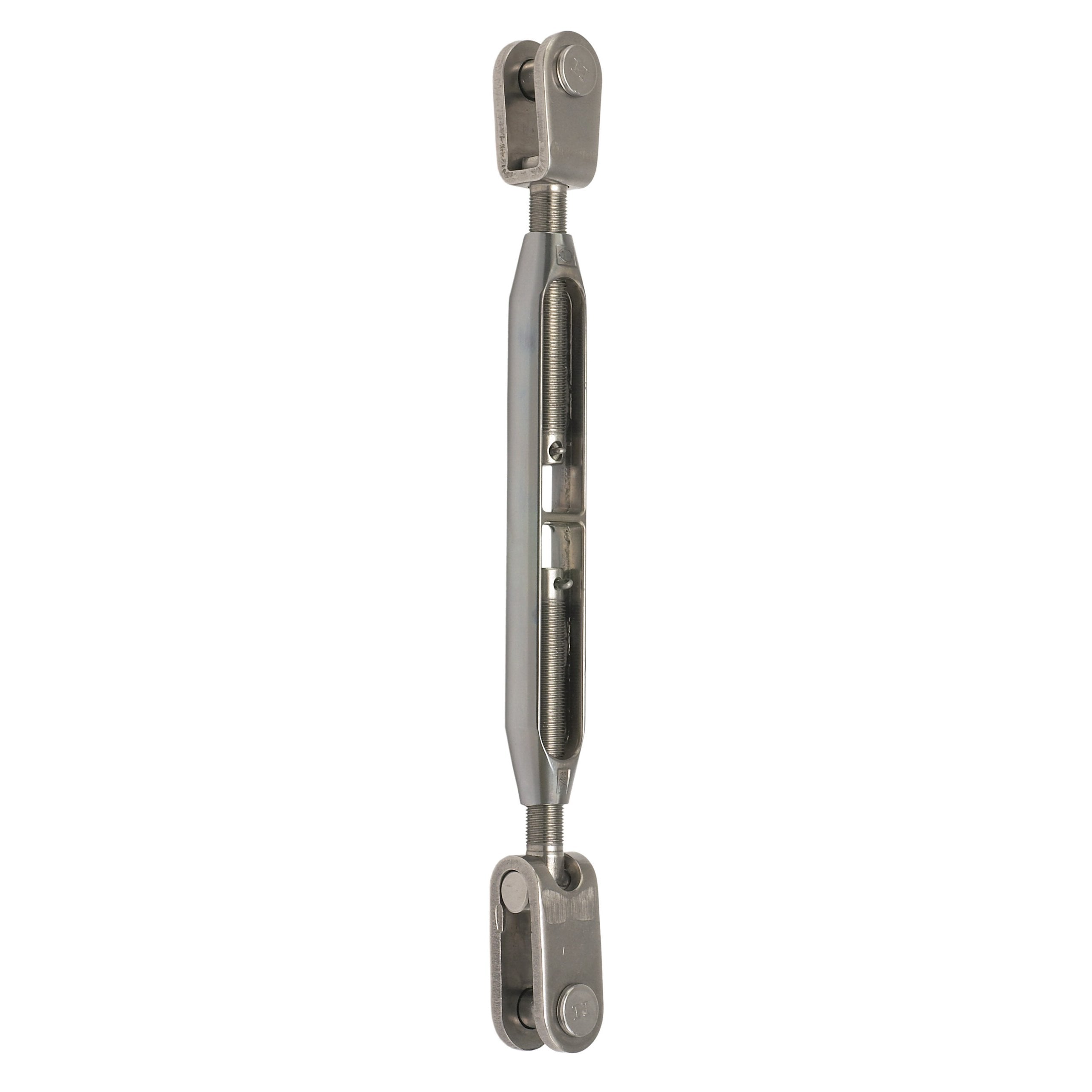

Turnbuckle - Bronze Body, Stainless Terminals, 7/8", Fork/Toggle, ø22 mm Clevis Pin

Turnbuckle with Fork/Toggle terminals, thread size 7/8", to be combined with ø14 mm wire applications. The chrome plated aluminium bronze body combined with high-grade marine stainless steel terminals provides excellent corrosion resistance, ensuring long-lasting performance and precise rig tuning in line with Seldén's guidelines.

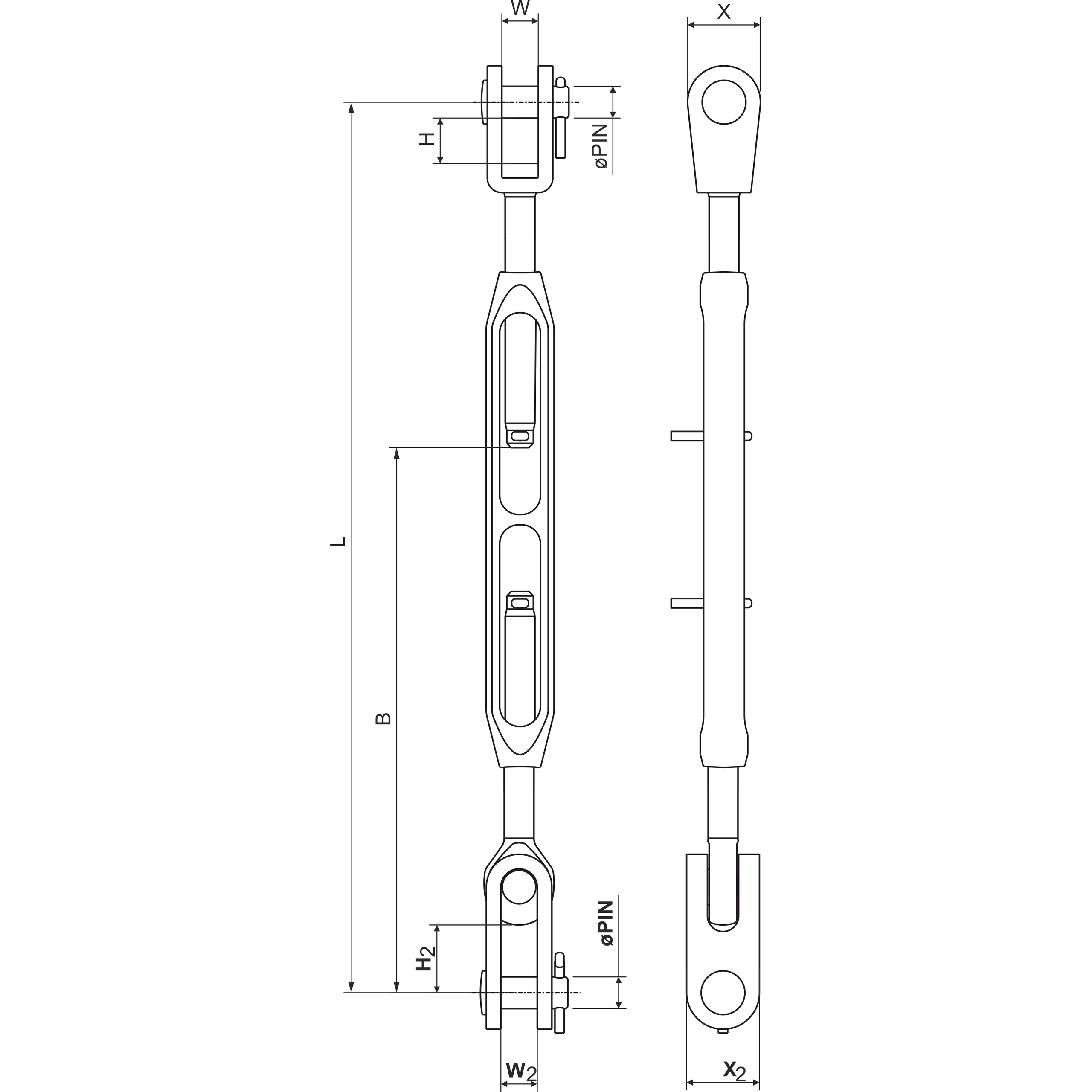

Thread size: 7/8"
Clevis pin Ø: 22.00 mm
L-MIN: 496 mm
L-MAX: 738 mm
W: 22.00 mm
H: 46.00 mm
X: 50 mm
W2: 23.00 mm
H2: 55.00 mm
X2: 47 mm
Breaking Load: 18000 kg
