Halyard Lead, Double - For rope halyards (not wire) C405/F406

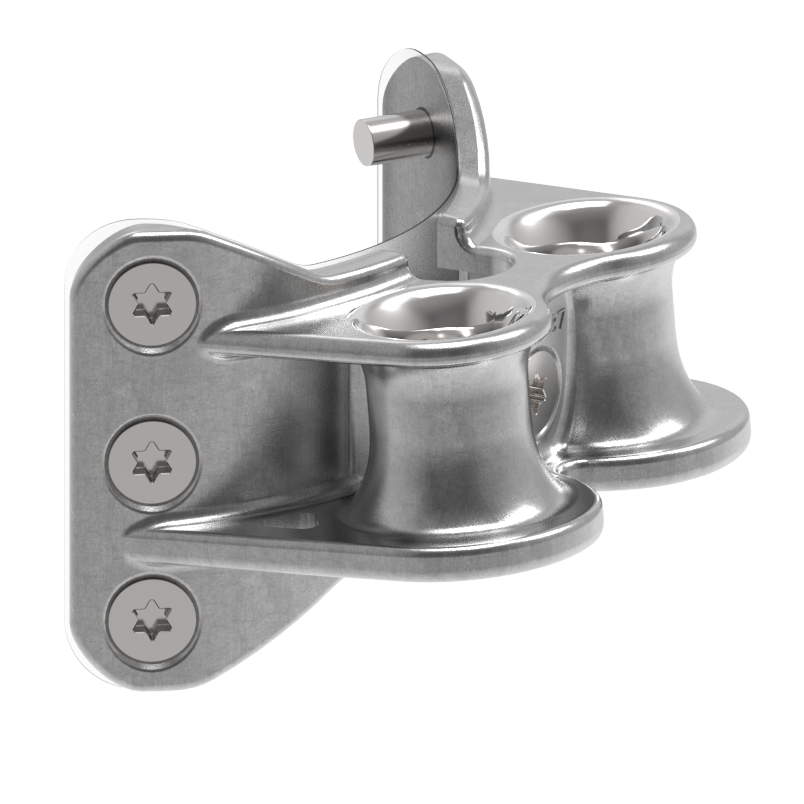

Double halyard lead fitting in electro polished stainless steel for routing of two rope halyards. The fitting is slightly angled to achieve a perfect alignment.

In order to prevent galvanic corrosion between stainless and aluminium, the fitting shall be lacquered on the inside to insulate it from the mast. Any other kind of insulation, such as a thin plastic layer, will do just as well. Use only for rope halyards (not wire).

M10 screws included.

Designed for Seldén sections C405-F406, but the sides can be shaped in a vise to fit other similar sized sections .

SWL: 2500 kg
Max Halyard Ø: 16 mm
Max RM MH: 340 kNm
Max RM Fr: 310 kNm
Type: Double
