Halyard Lead, Double - For rope halyards (not wire) C227-F286

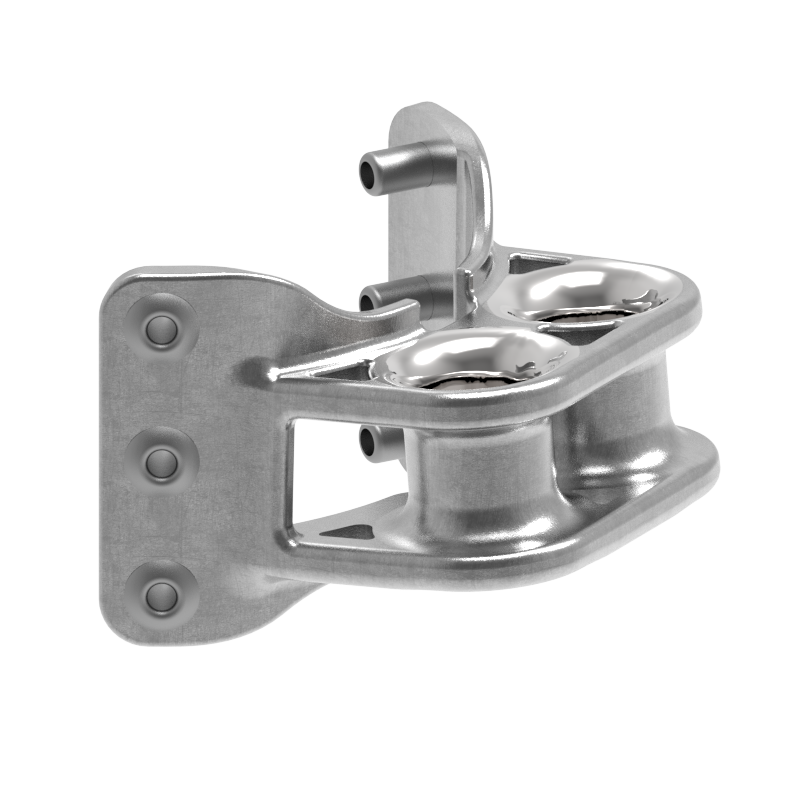

Double halyard lead fitting in electro polished stainless steel for routing of two rope halyards. The fitting is slightly angled to achieve a perfect alignment.

In order to prevent galvanic corrosion between stainless and aluminium, the fitting shall be lacquered on the inside to insulate it from the mast. Any other kind of insulation, such as a thin plastic layer, will do just as well. Use only for rope halyards (not wire).

Monel pop-rivets (ø6,4x12,7) included.

Designed for Seldén sections C227-F286, but the sides can be shaped in a vise to fit other similar sized sections.

SWL: 950 kg
Max Halyard Ø: 14 mm
Max RM MH: 85 kNm
Max RM Fr: 75 kNm
Type: Double

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
