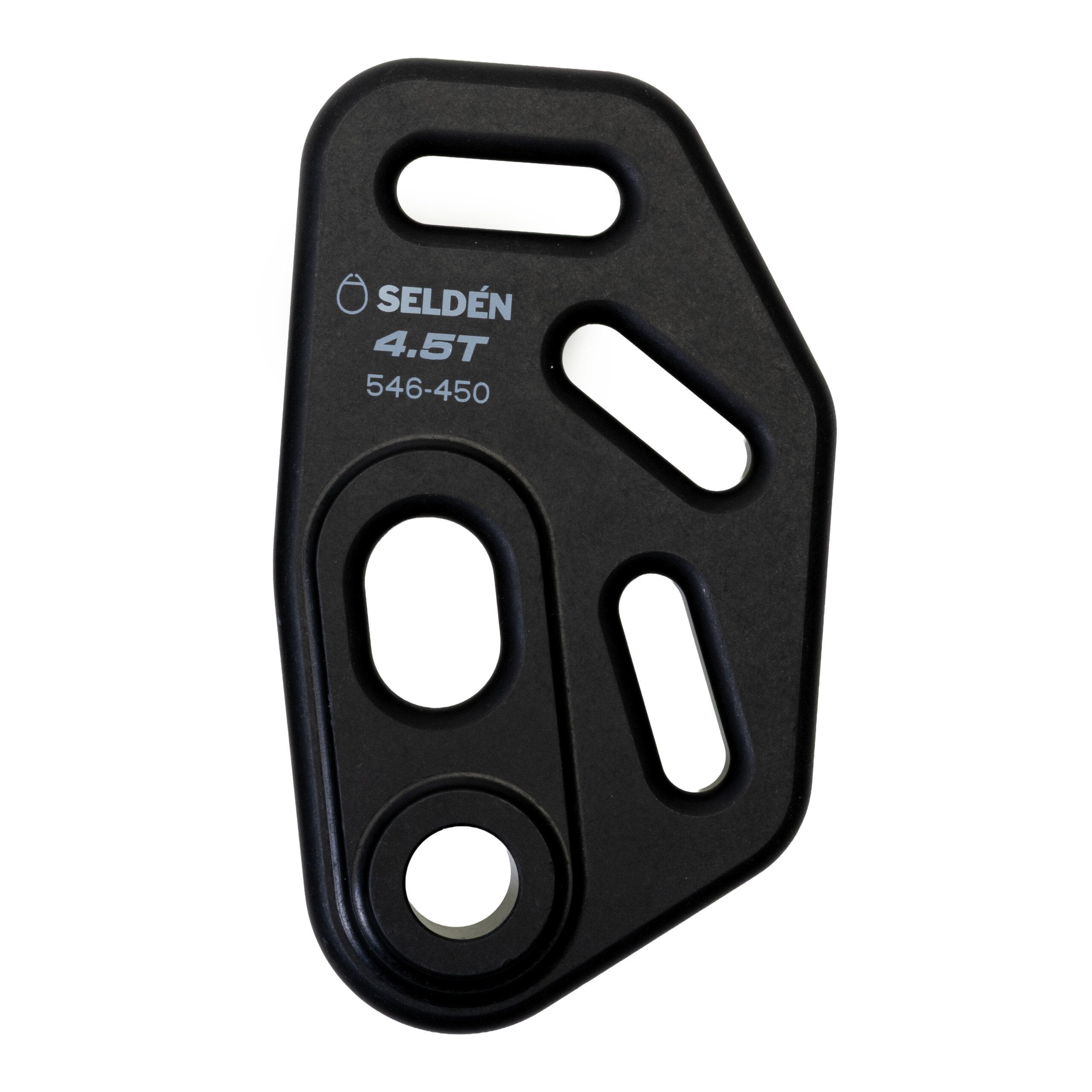

Tackboard for Cableless Code - CXr45, CX45, CXe45

With the growing popularity of cableless Code sails, Seldén offers
a range of tack boards and headboards suitable for the CX furlers, CXr and CXe. Manufactured from machined aluminium, these boards are designed in close collaboration with leading sailmakers.

• Optimized Load Distribution: Attachment holes for webbing are placed and angled to distribute the loads for optimized sail shape and long term service life of the sail.

• Low Furling Resistance: While the sections that connect to the furling drum and halyard swivel provide a secure, snug fit, the remaining areas are made as thin as possible to minimize initial resistance during furling.

• Durable Construction: Hard anodizing enhances corrosion resistance and durability in marine environments.

• Additional Lashing Option: Each board includes an extra attachment hole, allowing the use of a Dyneema® lashing if required.

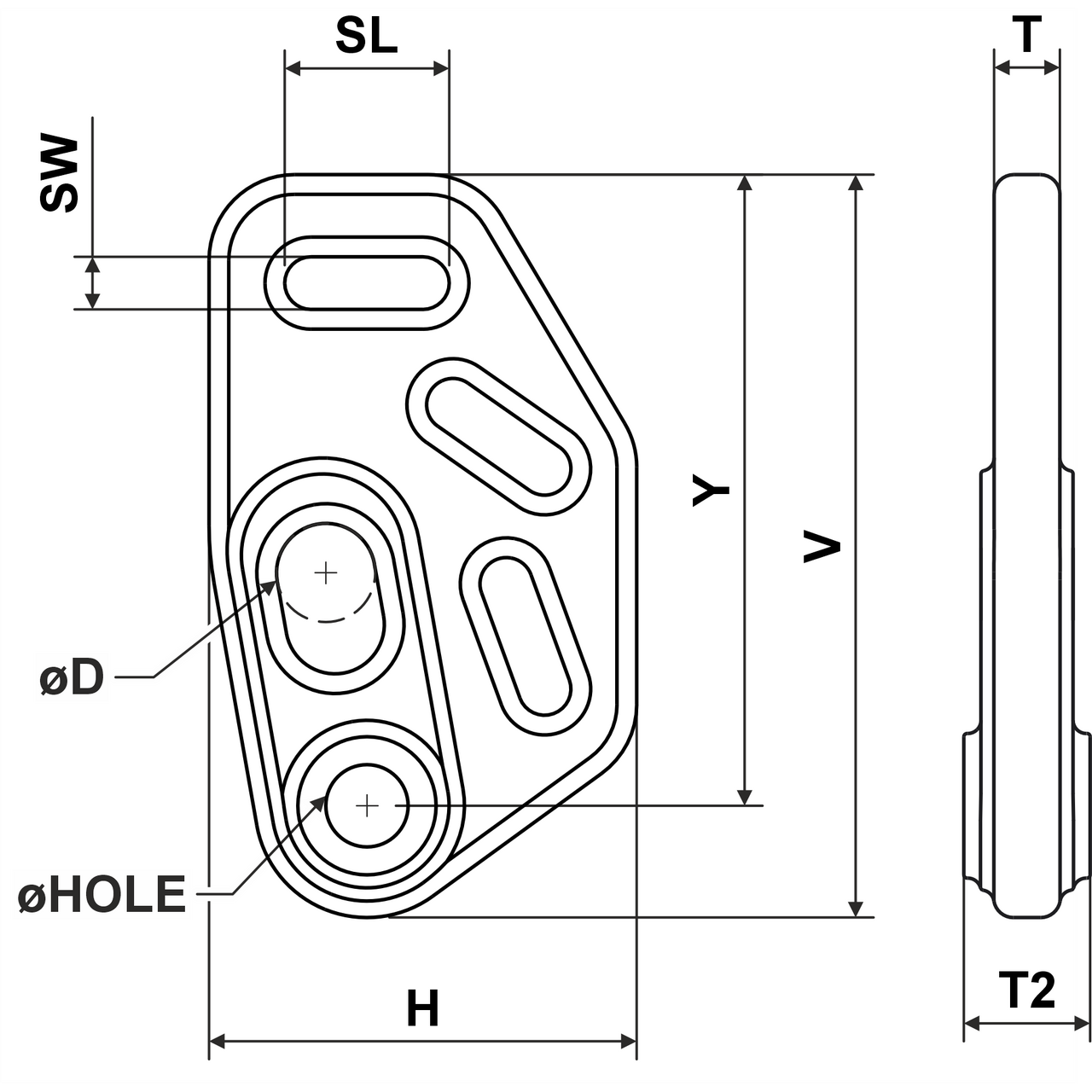

øHole: 16.50
H: 82 mm
V: 144 mm
T: 13 mm
T2: 20 mm
øD: 19 mm
SLxSW: 33x10 mm
Safe Working Load: 4500 kg
