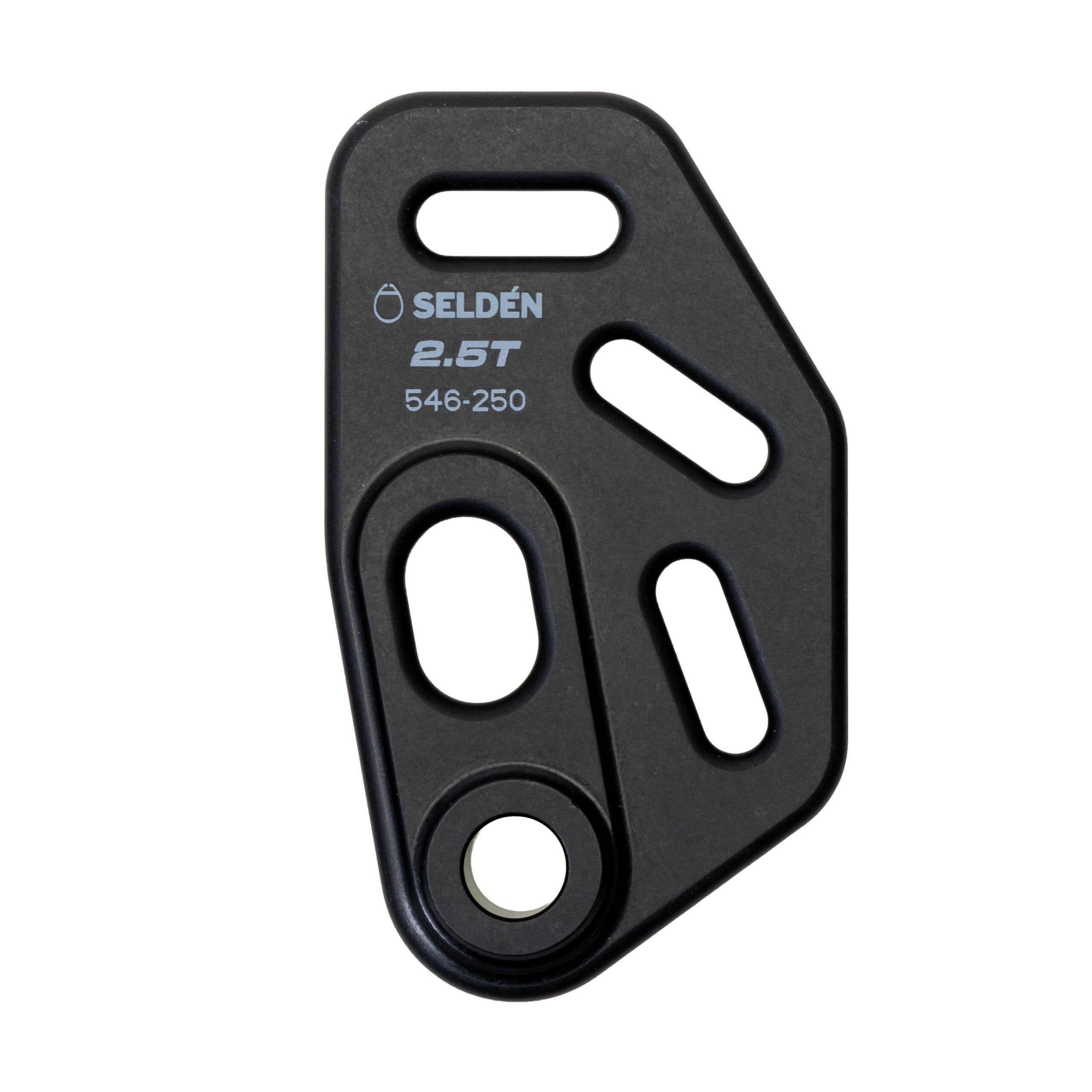

Tackboard for Cableless Code - CXr25, CX25, CXe25

With the growing popularity of cableless Code sails, Seldén offers
a range of tack boards and headboards suitable for the CX furlers, CXr and CXe. Manufactured from machined aluminium, these boards are designed in close collaboration with leading sailmakers.

• Optimized Load Distribution: Attachment holes for webbing are placed and angled to distribute the loads for optimized sail shape and long term service life of the sail.

• Low Furling Resistance: While the sections that connect to the furling drum and halyard swivel provide a secure, snug fit, the remaining areas are made as thin as possible to minimize initial resistance during furling.

• Durable Construction: Hard anodizing enhances corrosion resistance and durability in marine environments.

• Additional Lashing Option: Each board includes an extra attachment hole, allowing the use of a Dyneema® lashing if required.

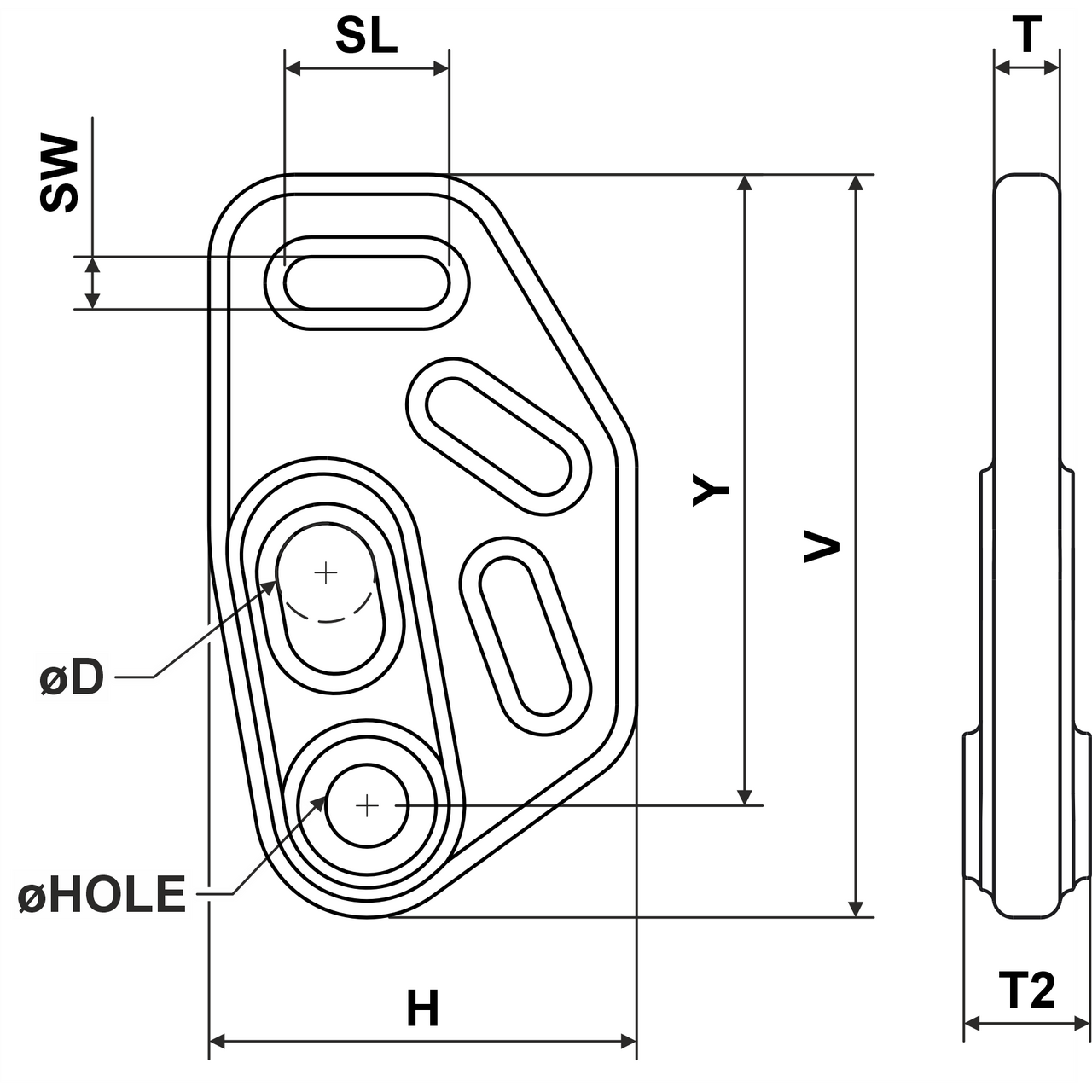

øHole: 12.50
H: 65 mm
V: 113 mm
T: 10 mm
T2: 19 mm
øD: 15 mm
SLxSW: 25x8 mm
Safe Working Load: 2500 kg

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
