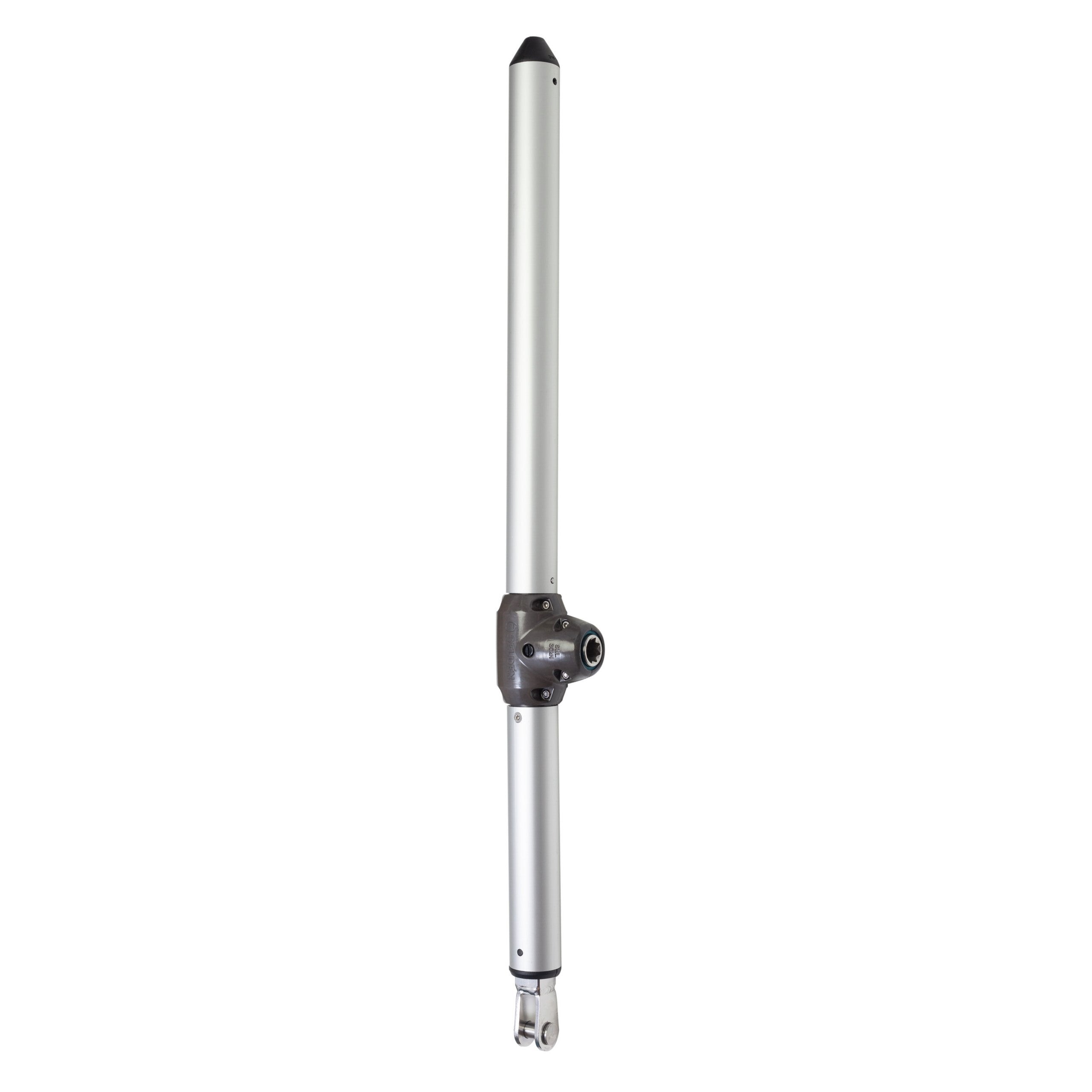

BACKSTAY TENSIONER(518/768mm)

Seldén backstay tensioners have smooth, clean surfaces. Even the wire terminal is fully covered. These low-weight backstay tensioners are simple to use. All you do is insert a standard winch handle and turn. The tensioner has a maximum working load of 30 kN. The stroke with this tensioner of standard length is 250 mm.

Clevis pins and bushes are supplied with every adjuster to suit small chainplates for Ø 6 and Ø 7 mm wire.

Wire Size ø: 6,7,8 mm
Stroke: 250 mm
Length min: 518 mm
Length max: 768 mm
BRL: 6500 kg
SWL: 3000 kg
