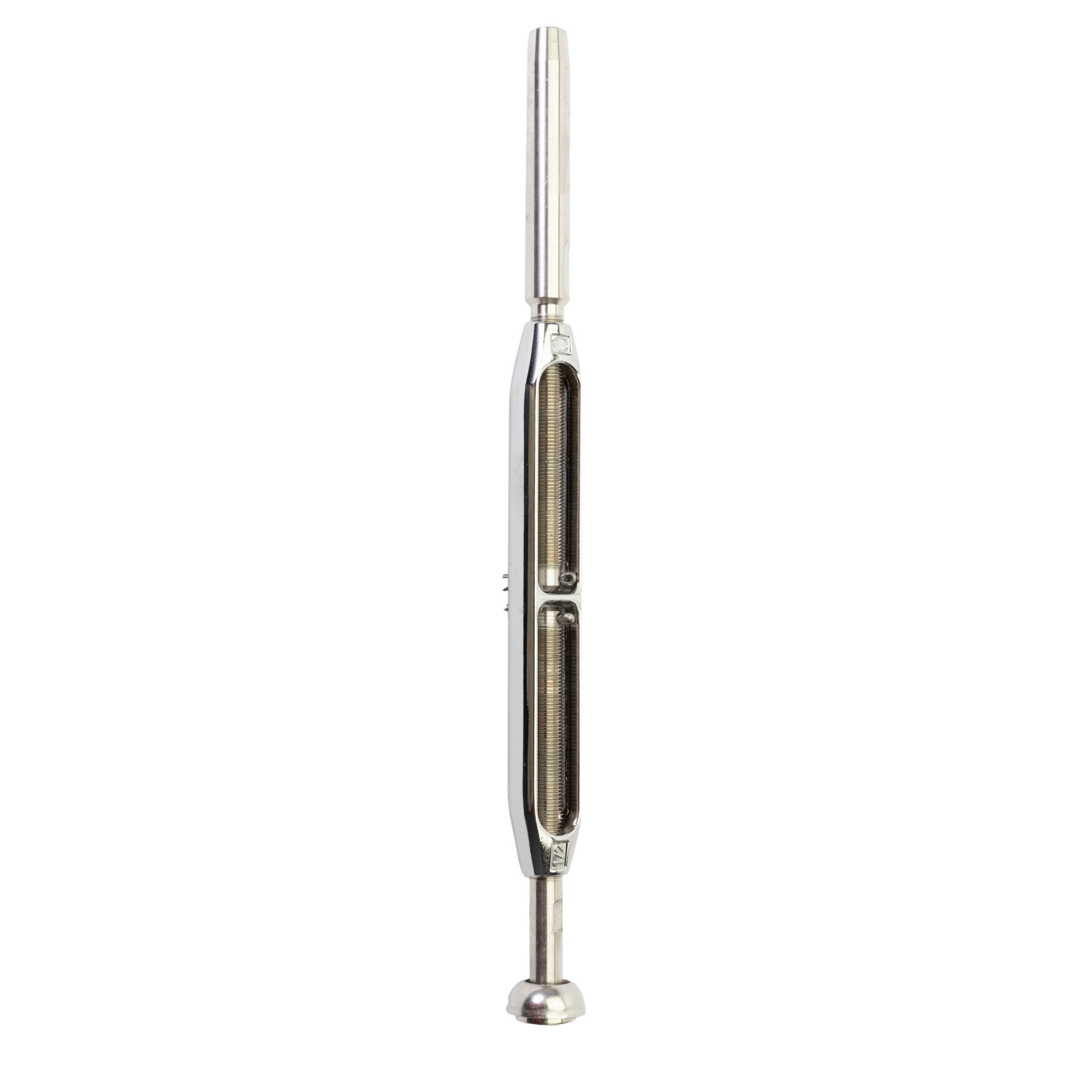

Turnbuckle - 7/16", ø7 mm Swage Terminal/Stemball R22, For Seldén spreader end

Turnbuckle with Swage Terminal/Stemball terminals, thread size 7/16", designed for spreader end applications with R22 specifications. The turnbuckle is constructed with a chrome plated aluminium bronze body and marine-grade stainless steel terminals, ensuring high resistance to corrosion and thread seizing, providing reliable and precise rig tuning in line with Seldén's guidelines.

The stemball terminal has a custom geometry and must only be used for Seldén spreader ends 500-989/-990/-991.

Wire Diam: 7
Thread Size: 7/16"
Stemball Size: 22 mm
L-MIN: 252 mm
L-MAX: 377 mm
Breaking Load: 47,5 kN

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
