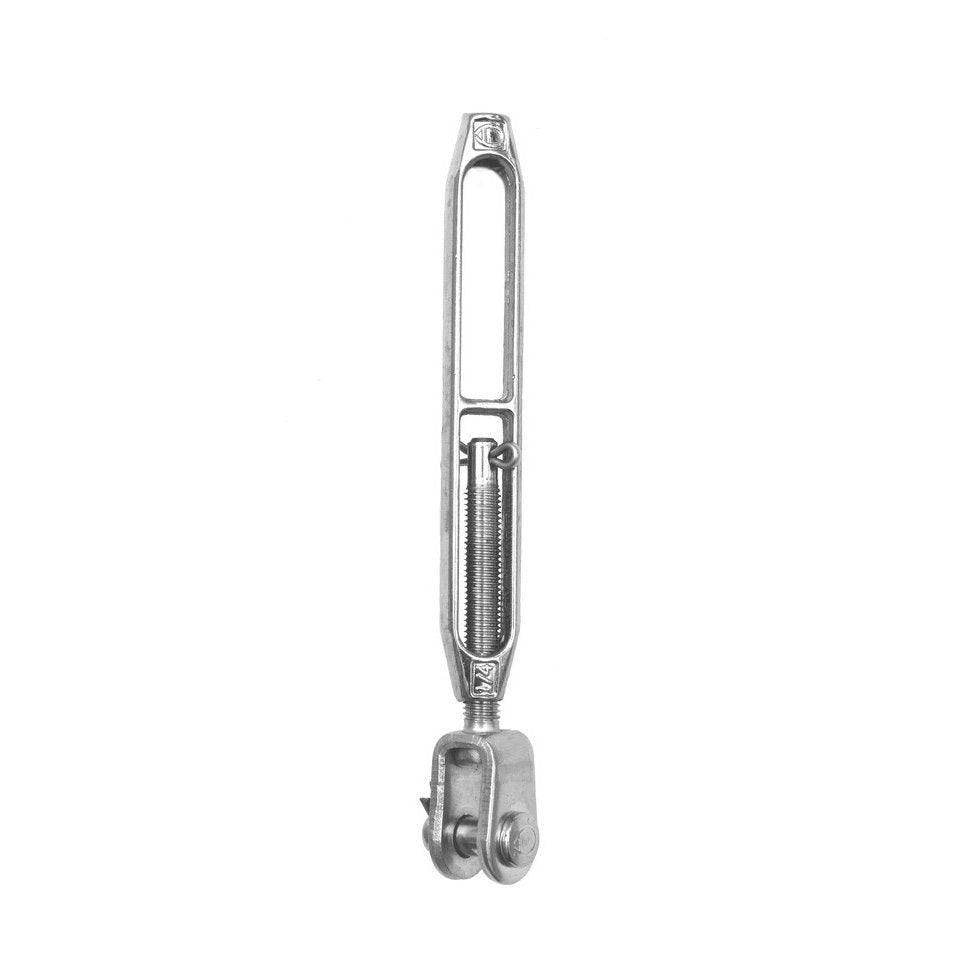

Turnbuckle - Bronze Body, Stainless Terminals, 1/4", Open/Fork, ø6,5 mm Clevis Pin

Turnbuckle with Open/Fork terminals, thread size 1/4", to be combined with ø3 or ø4 mm wire applications. This turnbuckle is constructed with a chrome plated aluminium bronze body and marine-grade stainless steel terminals, providing superior resistance to corrosion and thread seizing, ensuring reliable and precise rig tuning in accordance with Seldén's guidelines.

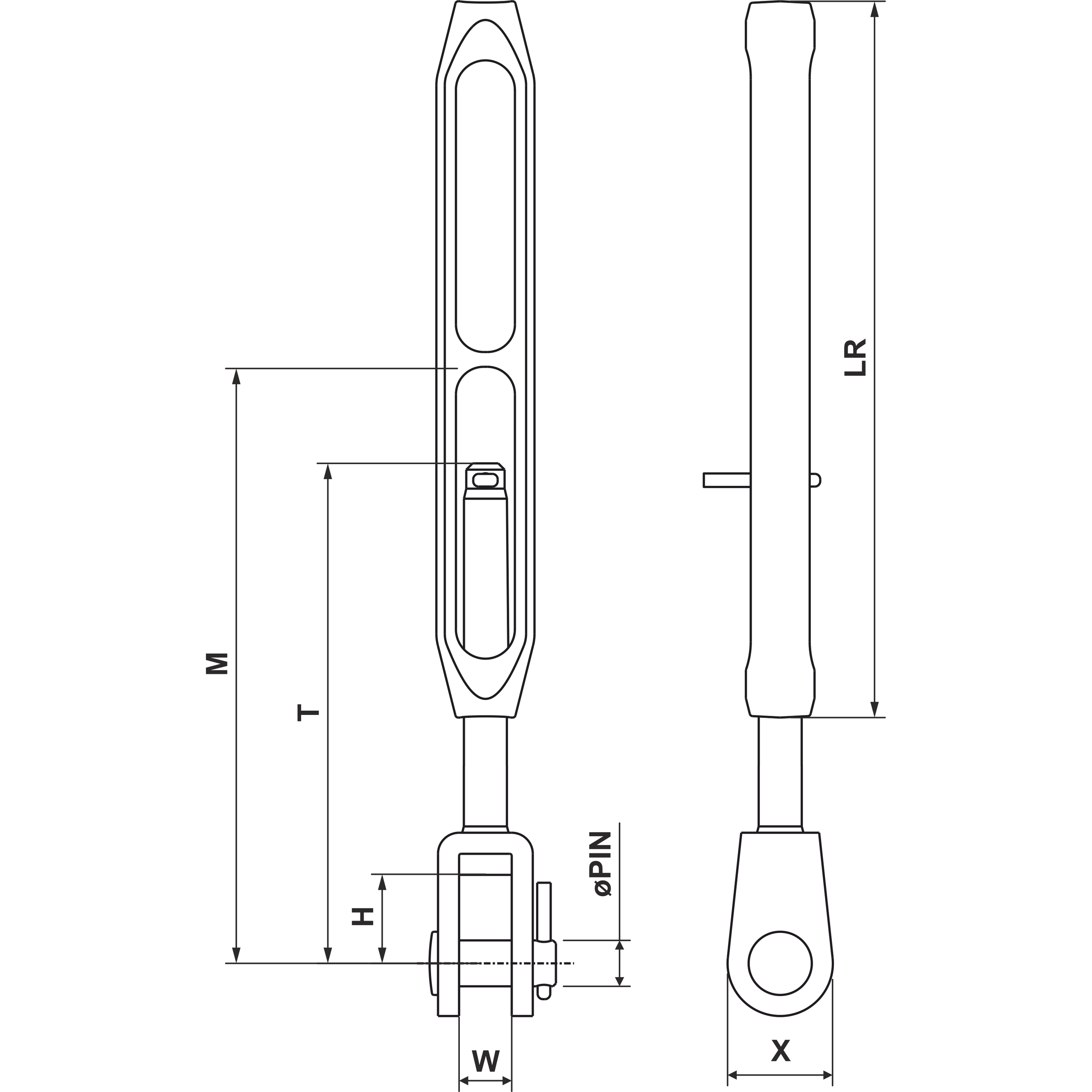

BodyType: bronze
Thread size: 1/4"
M-MIN: 68 mm
M-MAX: 104 mm
LR: 97 mm
T: 67 mm
W: 8.00 mm
H: 12.00 mm
X: 14.00 mm
Pin diam: 6.50 mm
Breaking Load: 1550 kg
