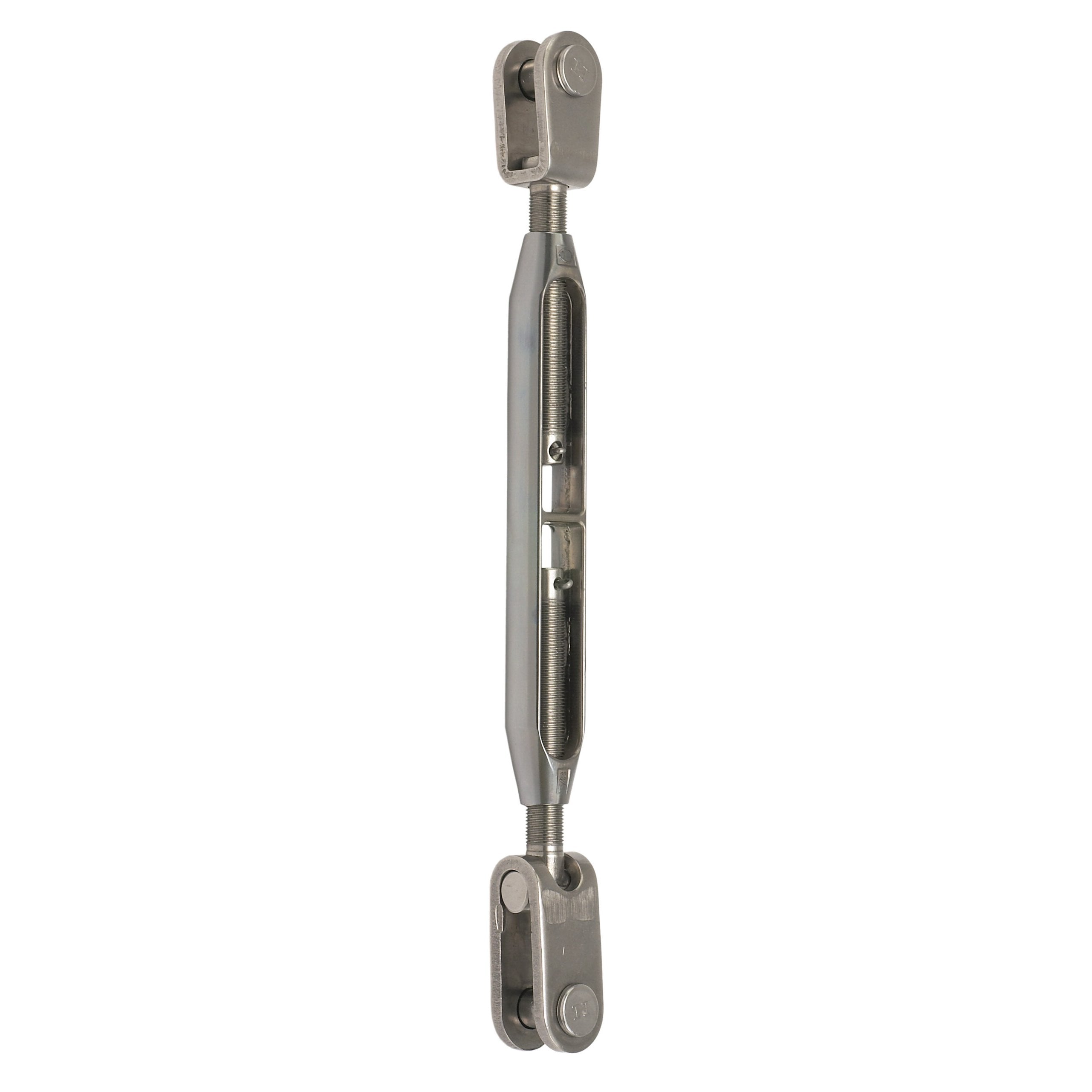

Turnbuckle - Bronze Body, Stainless Terminals, 1/4", Fork/Toggle, ø6,5 mm Clevis Pin

Turnbuckle with Fork/Toggle terminals, thread size 1/4", to be combined with ø3 or ø4 mm wire applications. The chrome plated aluminium bronze body combined with high-grade marine stainless steel terminals provides superior resistance to corrosion and thread seizing, ensuring safe and precise rig adjustments according to Seldén's guidelines.

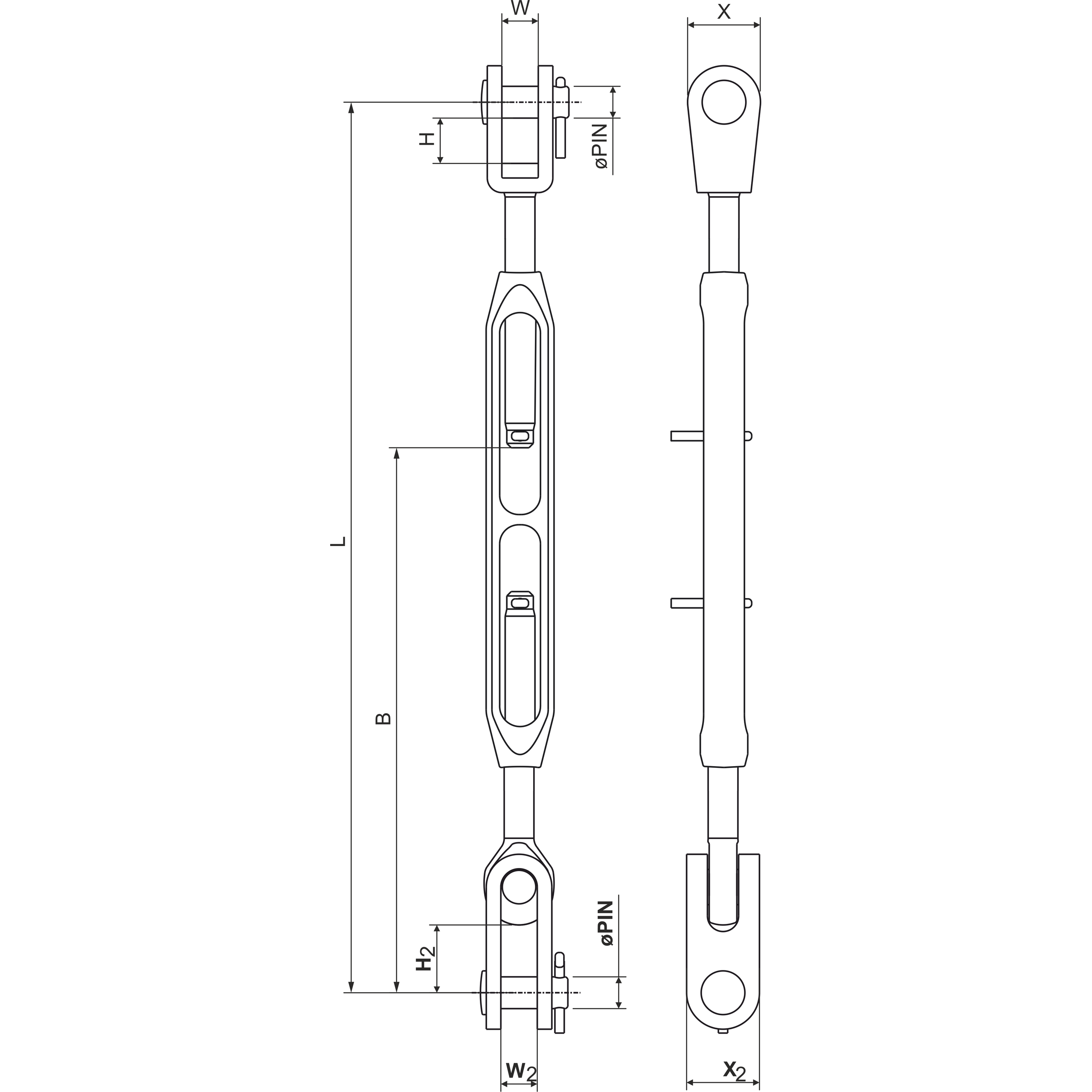

Thread size: 1/4"
Clevis pin Ø: 6.50 mm
L-MIN: 151 mm
L-MAX: 222 mm
W: 7.50 mm
H: 12.00 mm
X: 14 mm
W2: 7.50 mm
H2: 15.00 mm
X2: 14 mm
Breaking Load: 1550 kg

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
