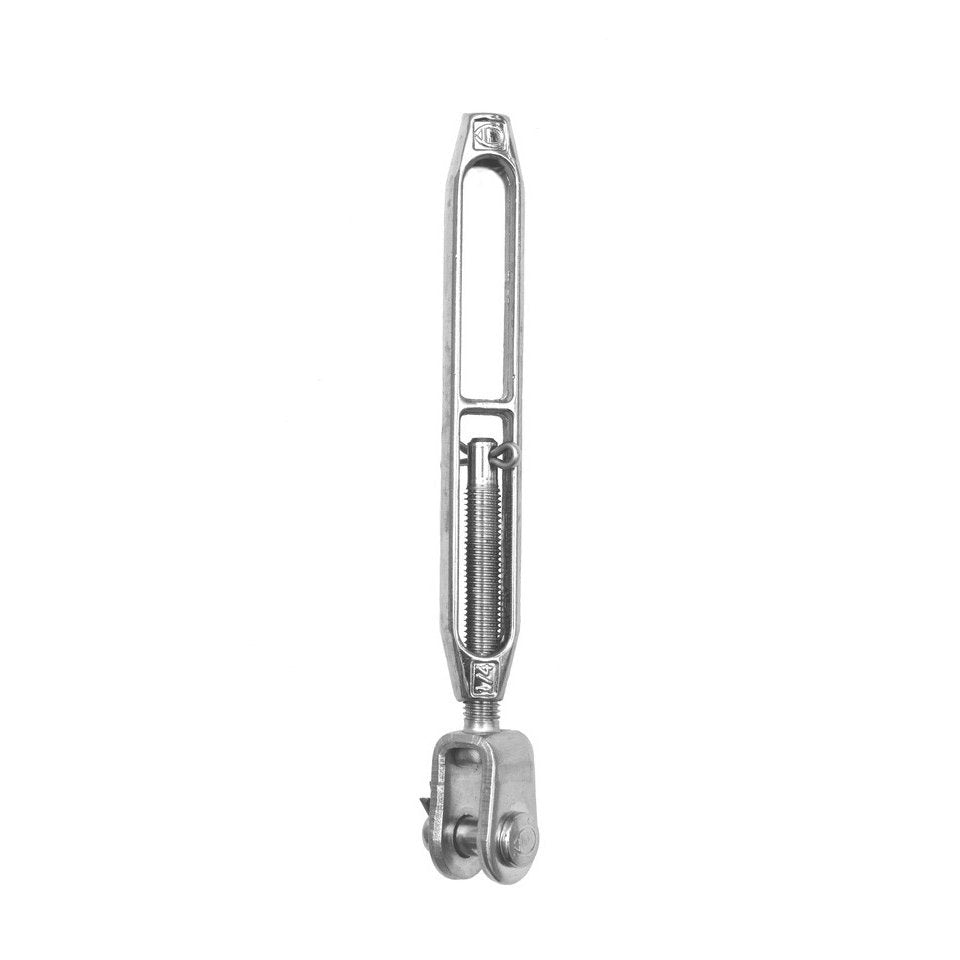

Turnbuckle - Bronze Body, Stainless Terminals, 1/2", Open/Fork, ø13 mm Clevis Pin

Turnbuckle with Open/Fork terminals, thread size 1/2", to be combined with ø7 or ø8 mm wire applications. Constructed with a chrome plated aluminium bronze body and high-grade marine stainless steel terminals, this turnbuckle offers enhanced resistance to corrosion and thread seizing, ensuring reliable and precise rig tuning in accordance with Seldén's guidelines.

BodyType: bronze
Thread size: 1/2"

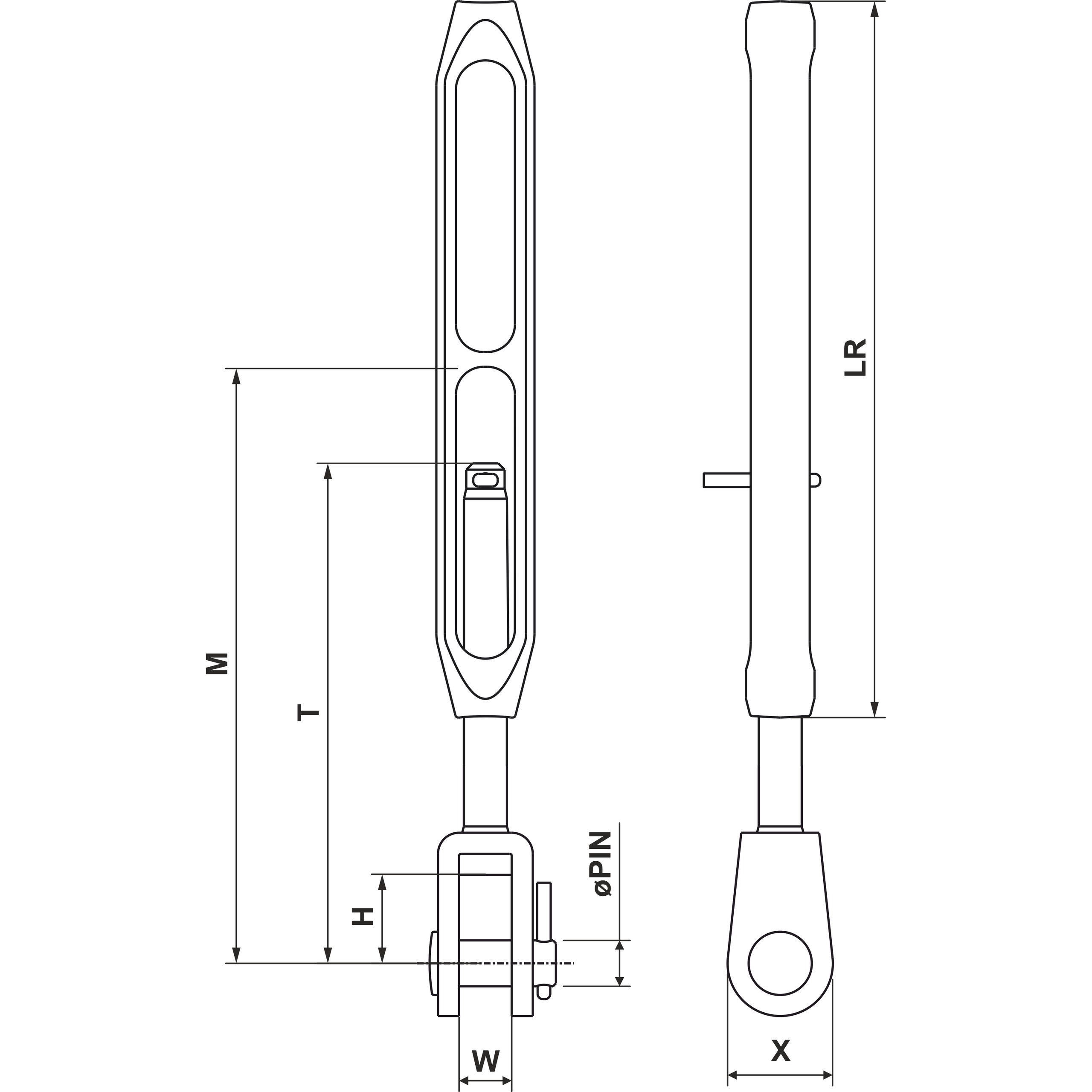

M-MIN: 134 mm
M-MAX: 208 mm
LR: 195 mm
T: 132 mm
W: 15.00 mm
H: 25.00 mm
X: 28.00 mm
Pin diam: 13.00 mm
Breaking Load: 6200 kg
