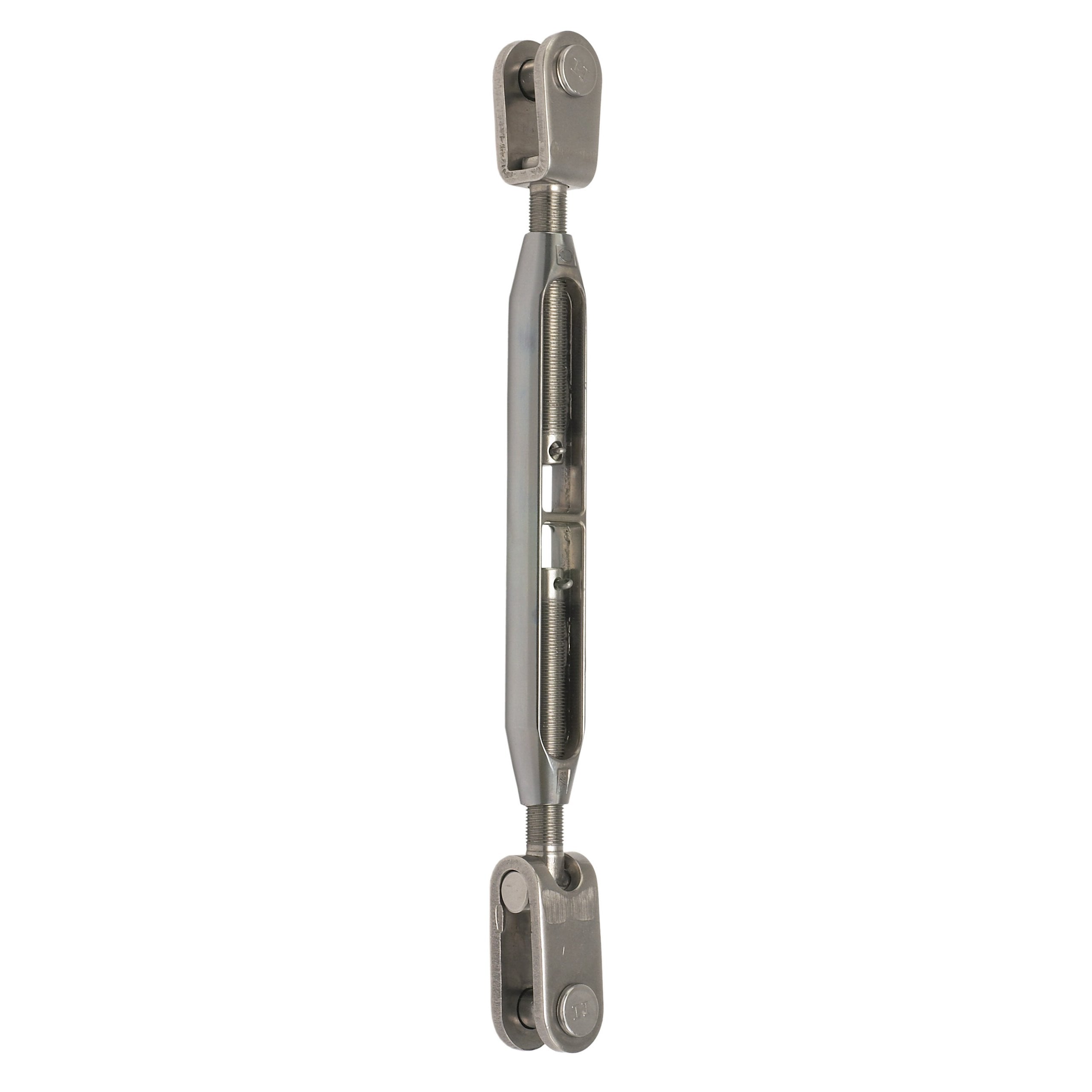

Turnbuckle - Bronze Body, Stainless Terminals, 1/2", Fork/Toggle, ø13 mm Clevis Pin

Turnbuckle with Fork/Toggle terminals, thread size 1/2", to be combined with ø7 mm wire applications. The design includes a chrome plated aluminium bronze body and high-grade marine stainless steel terminals to ensure maximum resistance to corrosion and thread seizing, allowing accurate rig adjustments in line with Seldén's guidelines.

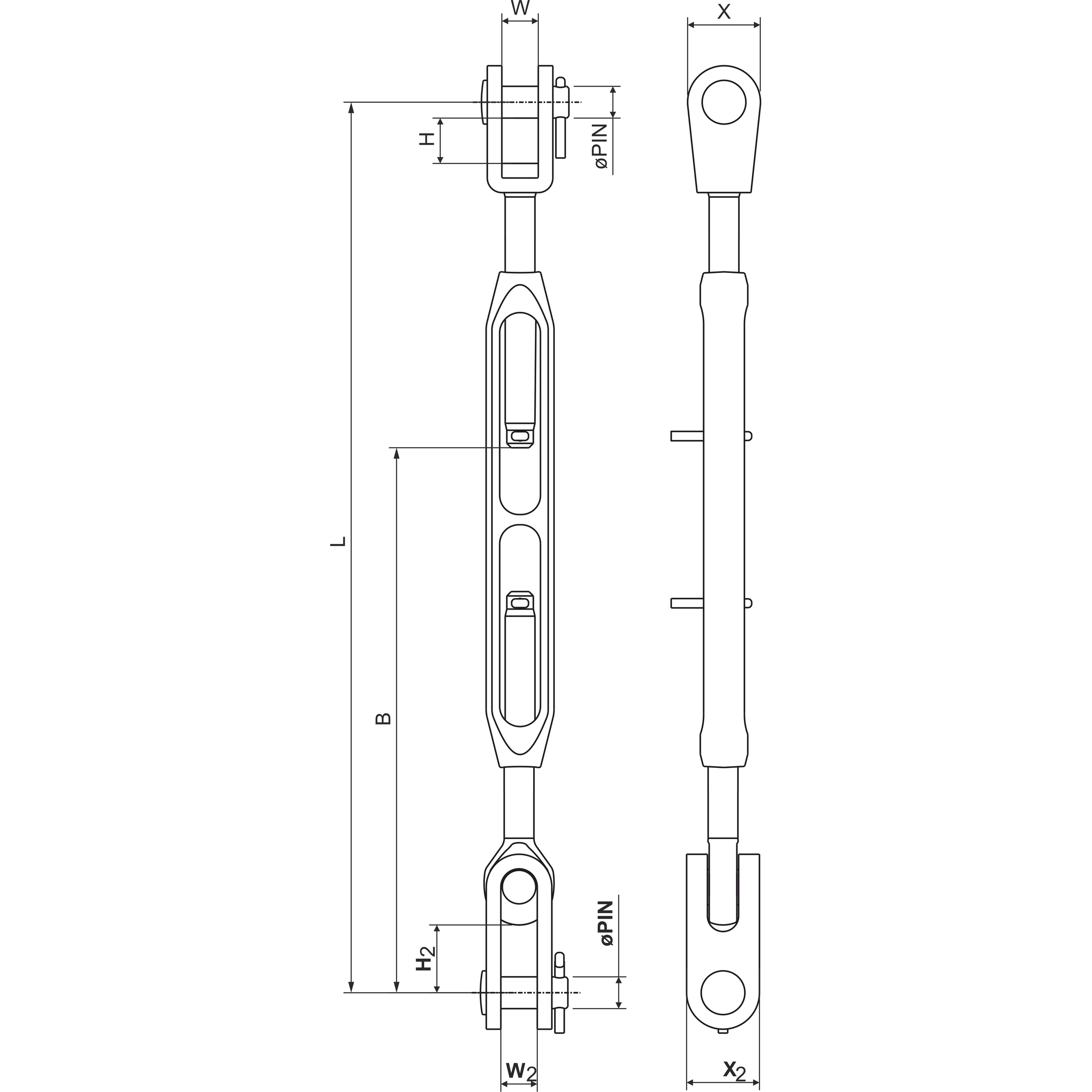

Thread size: 1/2"
Clevis pin Ø: 13.00 mm
L-MIN: 294 mm
L-MAX: 442 mm
W: 14.50 mm
H: 25.00 mm
X: 28 mm
W2: 14.50 mm
H2: 29.00 mm
X2: 28 mm
Breaking Load: 6200 kg
